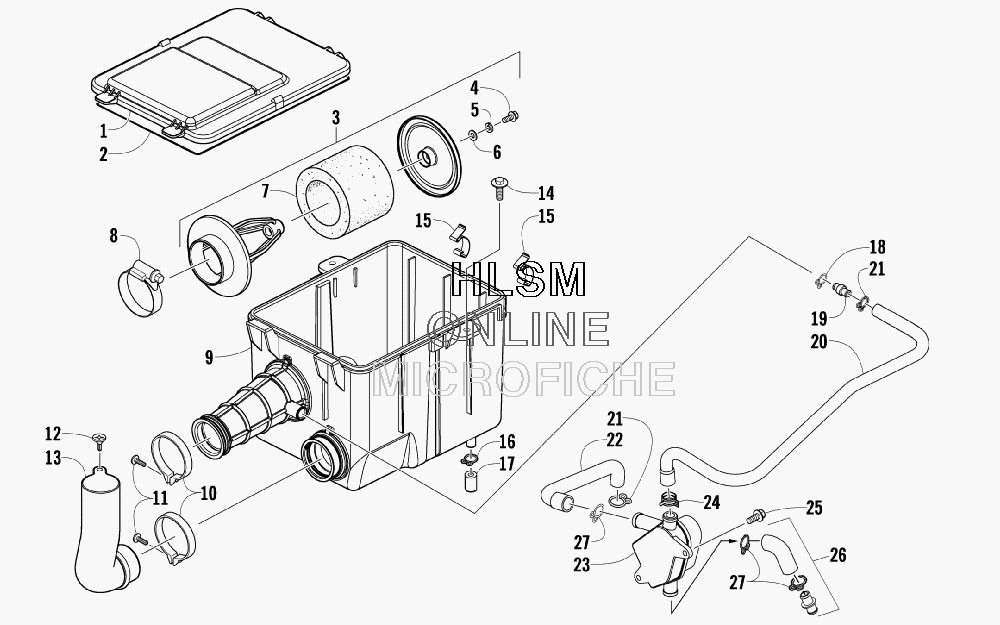

AIR INTAKE ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13303-705 COVER, AIR SILENCERCOVER, AIR SILENCER
-
23303-703 SEALSEAL
-
33303-704 FILTER, AIR - ASSEMBLY (INC. 4-7)FILTER, AIR - ASSEMBLY (INC. 4-7)
-
83304-416 CLAMP, HOSECLAMP, HOSE
-
93305-790 SILENCER, AIRSILENCER, AIR
-
103303-709 CLAMP, HOSE (INC. 11)CLAMP, HOSE (INC. 11)
-
113304-117 ...SCREW, MACHINE...SCREW, MACHINE
-
123304-062 SCREW, MACHINESCREW, MACHINE
-
133303-710 DUCTDUCT
-
143304-652 SCREW, CAPSCREW, CAP
-
153303-708 CLIP, SPRINGCLIP, SPRING
-
163304-433 CLAMP, HOSECLAMP, HOSE
-
173305-424 HOSE, DRAINHOSE, DRAIN
-
183303-716 CLAMP, HOSECLAMP, HOSE
-
193303-711 JOINT, BLOW-BYJOINT, BLOW-BY
-
203303-734 TUBE B - OIL CATCH (INC. ONE NO. 21)TUBE B - OIL CATCH (INC. ONE NO. 21)
-
213303-714 ...CLAMP, HOSE...CLAMP, HOSE
-
223303-733 TUBE A - OIL CATCH (INC. ONE NO. 21)TUBE A - OIL CATCH (INC. ONE NO. 21)
-
233303-706 CATCH, OILCATCH, OIL
-
243304-167 CLAMP, HOSECLAMP, HOSE
-
253304-553 SCREW, CAPSCREW, CAP
-
263303-735 TUBE C - OIL CATCH (INC. TWO NO. 27)TUBE C - OIL CATCH (INC. TWO NO. 27)
-
273303-712 ...CLAMP, HOSE...CLAMP, HOSE
