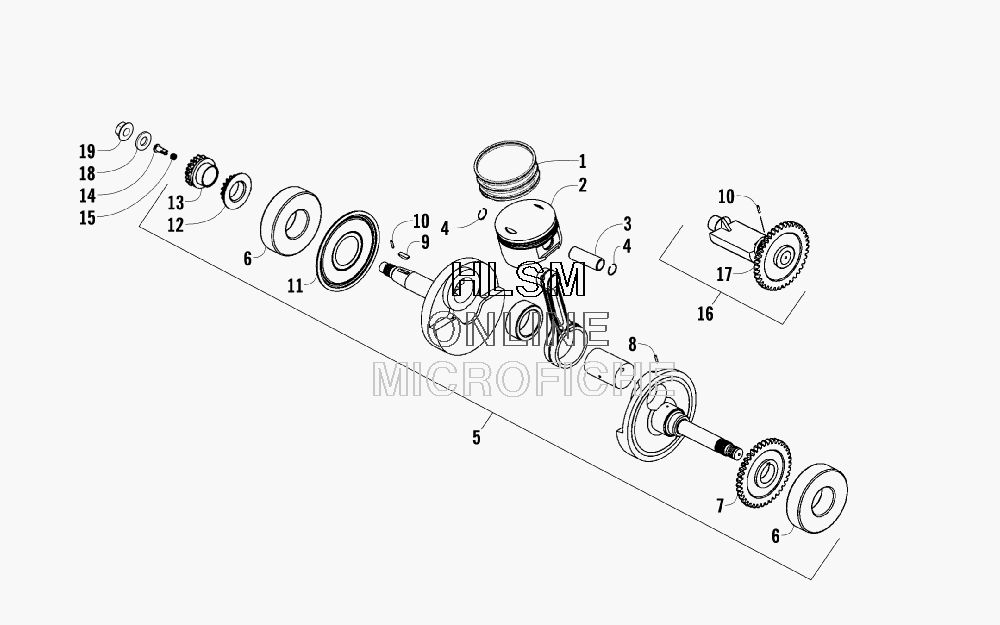

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
3305-752 ENGINE ASSEMBLY AC60BB COMPLETEENGINE ASSEMBLY AC60BB COMPLETE
-
13303-664 RING SET, PISTONRING SET, PISTON
-
23305-625 PISTONPISTON
-
33305-623 PIN, PISTONPIN, PISTON
-
43304-159 CIRCLIPCIRCLIP
-
53305-619 CRANKSHAFT ASSEMBLY (INC. 6-13)CRANKSHAFT ASSEMBLY (INC. 6-13)
-
63304-419 ...BEARING...BEARING
-
73304-234 ...GEAR, BALANCER...GEAR, BALANCER
-
83304-962 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
93304-145 ...KEY...KEY
-
103304-439 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
113305-328 ...PLATE, CRANKSHAFT...PLATE, CRANKSHAFT
-
123304-236 ...GEAR, TIMING...GEAR, TIMING
-
133303-689 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
143303-693 OIL THROUGHOIL THROUGH
-
153303-694 SPRINGSPRING
-
163305-624 BALANCER, CRANKSHAFT (INC. 17 AND ONE NO. 10)BALANCER, CRANKSHAFT (INC. 17 AND ONE NO. 10)
-
173303-668 ...GEAR, BALANCER...GEAR, BALANCER
-
183304-036 WASHER, THRUSTWASHER, THRUST
-
193304-024 NUTNUT
