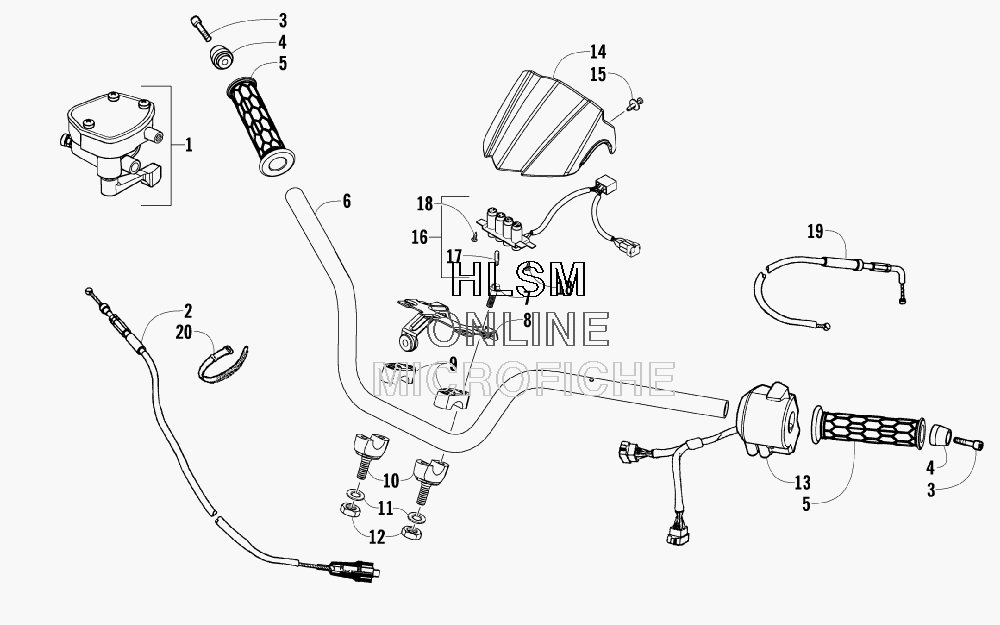

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13303-953 LEVER, THROTTLE - ASSEMBLYLEVER, THROTTLE - ASSEMBLY
-
23305-414 CABLE, THROTTLECABLE, THROTTLE
-
33304-016 SCREW, CAPSCREW, CAP
-
43305-541 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
53303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
63304-367 HANDLE PIPE STRG-SILVERHANDLE PIPE STRG-SILVER
-
73305-400 SCREW, CAPSCREW, CAP
-
83304-368 BRACKET, INSTRUMENT PODBRACKET, INSTRUMENT POD
-
93303-954 RETAINER, HANDLEBAR - UPPERRETAINER, HANDLEBAR - UPPER
-
103303-955 RETAINER, HANDLEBAR - LOWERRETAINER, HANDLEBAR - LOWER
-
113305-088 WASHERWASHER
-
123303-325 NUTNUT
-
133303-852 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
143303-436 INSTRUMENT POD - BLACKINSTRUMENT POD - BLACK
-
153303-592 CLIP, RETAININGCLIP, RETAINING
-
163304-285 PILOT LAMP - ASSEMBLY (INC. 17)PILOT LAMP - ASSEMBLY (INC. 17)
-
173304-284 ...BULB...BULB
-
183304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
193305-462 CABLE, CHOKECABLE, CHOKE
-
203303-839 TIE, CABLETIE, CABLE
