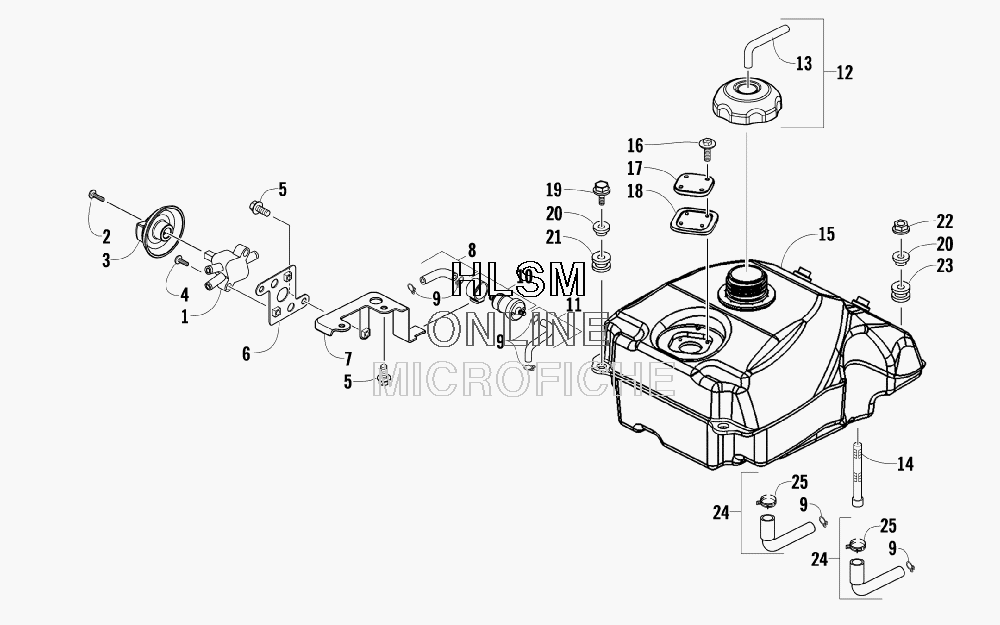

GAS TANK ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13303-700 SHUT-OFF, FUEL (INC. 2)SHUT-OFF, FUEL (INC. 2)
-
23304-120 ...SCREW, MACHINE...SCREW, MACHINE
-
33303-701 COVER, FUEL SHUT-OFFCOVER, FUEL SHUT-OFF
-
43303-316 SCREW, MACHINESCREW, MACHINE
-
53304-409 SCREW, CAPSCREW, CAP
-
63305-551 BRACKET, MOUNTING - FUEL SHUT-OFFBRACKET, MOUNTING - FUEL SHUT-OFF
-
73305-419 BRACKET, SUPPORTBRACKET, SUPPORT
-
83305-421 HOSE ASSEMBLY (INC. 9)HOSE ASSEMBLY (INC. 9)
-
93303-349 ...CLAMP, HOSE...CLAMP, HOSE
-
103305-501 FILTER, FUELFILTER, FUEL
-
113305-422 HOSE ASSEMBLY (INC. 9)HOSE ASSEMBLY (INC. 9)
-
123304-246 CAP, GAS TANK (INC. 13)CAP, GAS TANK (INC. 13)
-
133304-169 ...HOSE, VENT...HOSE, VENT
-
143303-058 STRAINER, FUELSTRAINER, FUEL
-
153305-415 TANK, GASTANK, GAS
-
163305-397 SCREW, CAPSCREW, CAP
-
173305-417 COVER, ACCESSCOVER, ACCESS
-
183305-418 SEALSEAL
-
193304-551 SCREW, CAPSCREW, CAP
-
203303-226 INSERTINSERT
-
213303-406 GROMMETGROMMET
-
223303-331 NUTNUT
-
233304-647 GROMMETGROMMET
-
243305-416 HOSE ASSEMBLY (INC. 25 AND TWO NO. 9)HOSE ASSEMBLY (INC. 25 AND TWO NO. 9)
-
253303-351 ...CLAMP, HOSE...CLAMP, HOSE
