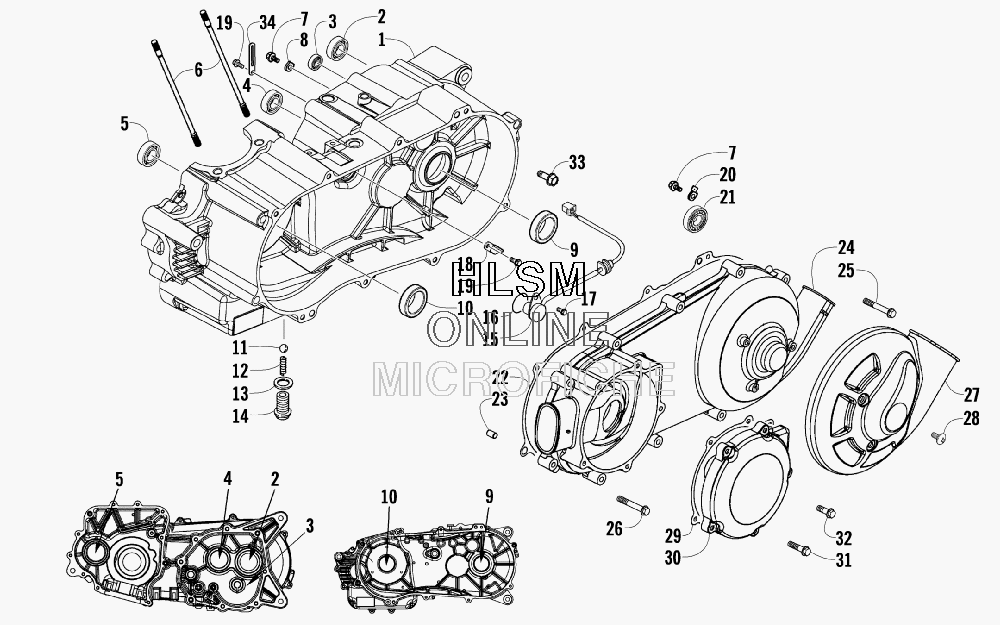

LEFT CRANKCASE AND COVER ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13304-221 CRANKCASECRANKCASE
-
23304-067 BEARING BALL 6305BEARING BALL 6305
-
33304-074 BEARING NEEDLE 20*26*16BEARING NEEDLE 20*26*16
-
43304-699 BEARING BALL RADIAL 6204BEARING BALL RADIAL 6204
-
53304-195 BEARING RADIAL BALL 6205BEARING RADIAL BALL 6205
-
63305-606 BOLT, STUDBOLT, STUD
-
73304-005 SCREW, CAPSCREW, CAP
-
83304-039 RETAINER, BEARINGRETAINER, BEARING
-
93304-091 SEAL, OILSEAL, OIL
-
103304-079 SEAL, OILSEAL, OIL
-
113304-205 BALL, STOPPERBALL, STOPPER
-
123304-063 SPRINGSPRING
-
133304-021 WASHERWASHER
-
143304-109 PLUGPLUG
-
153304-698 SWITCH, GEAR SHIFT POSITION (INC. 16)SWITCH, GEAR SHIFT POSITION (INC. 16)
-
163305-776 ...O-RING...O-RING
-
173304-187 SCREW, CAPSCREW, CAP
-
183303-843 RETAINER, WIRERETAINER, WIRE
-
193303-381 SCREW, CAPSCREW, CAP
-
203304-040 RETAINER, BEARINGRETAINER, BEARING
-
213304-073 BEARINGBEARING
-
223303-642 GASKET, COVERGASKET, COVER
-
233303-342 PIN, DOWELPIN, DOWEL
-
243303-632 COVER, CRANKCASECOVER, CRANKCASE
-
253304-003 BOLT FLANGE SHF 6*28BOLT FLANGE SHF 6*28
-
263304-004 BOLT FLANGE SHF 6*40BOLT FLANGE SHF 6*40
-
273304-222 COVER, PROTECTIVECOVER, PROTECTIVE
-
283304-407 SCREW, MACHINESCREW, MACHINE
-
293304-101 GASKET, COVERGASKET, COVER
-
303304-225 COVERCOVER
-
313304-190 BOLT FLANGE SH 6*32BOLT FLANGE SH 6*32
-
323303-384 BOLT FLANGE SH 6*25BOLT FLANGE SH 6*25
-
333303-365 BOLT FLANGE 8*12BOLT FLANGE 8*12
-
343304-158 CLAMP, WIRECLAMP, WIRE
