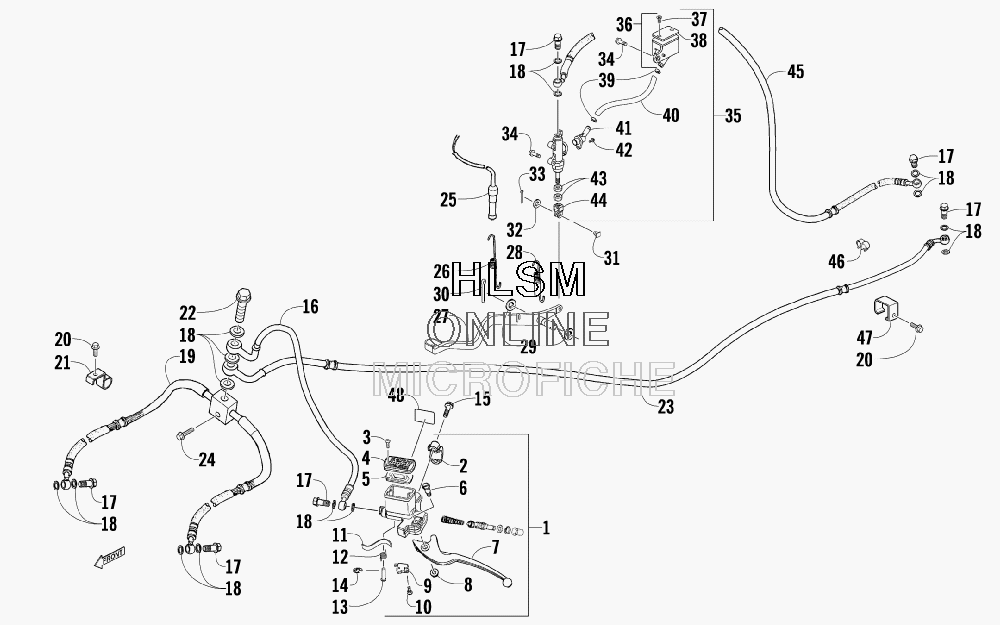

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13303-894 MASTER CYLINDER - ASSEMBLY (INC. 2-15)MASTER CYLINDER - ASSEMBLY (INC. 2-15)
-
23303-175 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
33303-318 ...SCREW, MACHINE...SCREW, MACHINE
-
43303-923 ...COVER, MASTER CYLINDER...COVER, MASTER CYLINDER
-
53303-925 ...DIAPHRAGM, MASTER CYLINDER...DIAPHRAGM, MASTER CYLINDER
-
63304-017 ...SCREW, SHOULDER...SCREW, SHOULDER
-
73304-369 ...LEVER, BRAKE...LEVER, BRAKE
-
83304-654 ...NUT...NUT
-
93303-141 ...SWITCH, BRAKE...SWITCH, BRAKE
-
103303-321 ...SCREW, MACHINE...SCREW, MACHINE
-
113304-442 ...LOCK, BRAKE LEVER...LOCK, BRAKE LEVER
-
123304-678 ...SPRING, RETURN...SPRING, RETURN
-
133304-679 ...PIN...PIN
-
143304-680 ...E-CLIP...E-CLIP
-
153304-746 ...SCREW, CAP...SCREW, CAP
-
163304-321 HOSE, BRAKE - JUNCTION BLOCK/MASTER CYLINDERHOSE, BRAKE - JUNCTION BLOCK/MASTER CYLINDER
-
173303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
183303-284 WASHER, CRUSHWASHER, CRUSH
-
193305-681 HOSE, BRAKE W/JUNCTION BLOCKHOSE, BRAKE W/JUNCTION BLOCK
-
203304-553 SCREW, CAPSCREW, CAP
-
213303-919 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
223304-674 BOLT, BANJO-FITTING - DOUBLEBOLT, BANJO-FITTING - DOUBLE
-
233304-319 HOSE, BRAKE - JUNCTION BLOCK/REAR CALIPERHOSE, BRAKE - JUNCTION BLOCK/REAR CALIPER
-
243304-176 SCREW, CAPSCREW, CAP
-
253304-685 SWITCH, BRAKESWITCH, BRAKE
-
263303-855 SPRING, STOPSPRING, STOP
-
273304-335 LEVER, BRAKELEVER, BRAKE
-
283303-929 SPRING, SETSPRING, SET
-
293304-139 WASHERWASHER
-
303304-143 PIN, COTTERPIN, COTTER
-
313303-927 PIN, CLEVISPIN, CLEVIS
-
323304-050 WASHERWASHER
-
333304-141 PIN, COTTERPIN, COTTER
-
343304-551 SCREW, CAPSCREW, CAP
-
353304-306 BRAKE ASSEMBLY - REAR (INC. 36-44)BRAKE ASSEMBLY - REAR (INC. 36-44)
-
363303-896 ...RESERVOIR, BRAKE (INC. 37-38)...RESERVOIR, BRAKE (INC. 37-38)
-
373304-119 ...SCREW, MACHINE...SCREW, MACHINE
-
383304-332 ...COVER, BRAKE RESERVOIR...COVER, BRAKE RESERVOIR
-
393303-895 ...CLAMP, HOSE...CLAMP, HOSE
-
403304-308 ...HOSE, BRAKE...HOSE, BRAKE
-
413304-307 ...CONNECTOR...CONNECTOR
-
423303-321 ...SCREW, MACHINE...SCREW, MACHINE
-
433304-128 ...NUT, JAM...NUT, JAM
-
443303-928 ...ACTUATOR, PUSH ROD...ACTUATOR, PUSH ROD
-
453304-299 HOSE, BRAKE - REAR BRAKE/REAR CALIPERHOSE, BRAKE - REAR BRAKE/REAR CALIPER
-
463304-675 CLIP, RETAININGCLIP, RETAINING
-
473303-891 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
481411-865 DECAL, WARNING - PARKING BRAKEDECAL, WARNING - PARKING BRAKE
