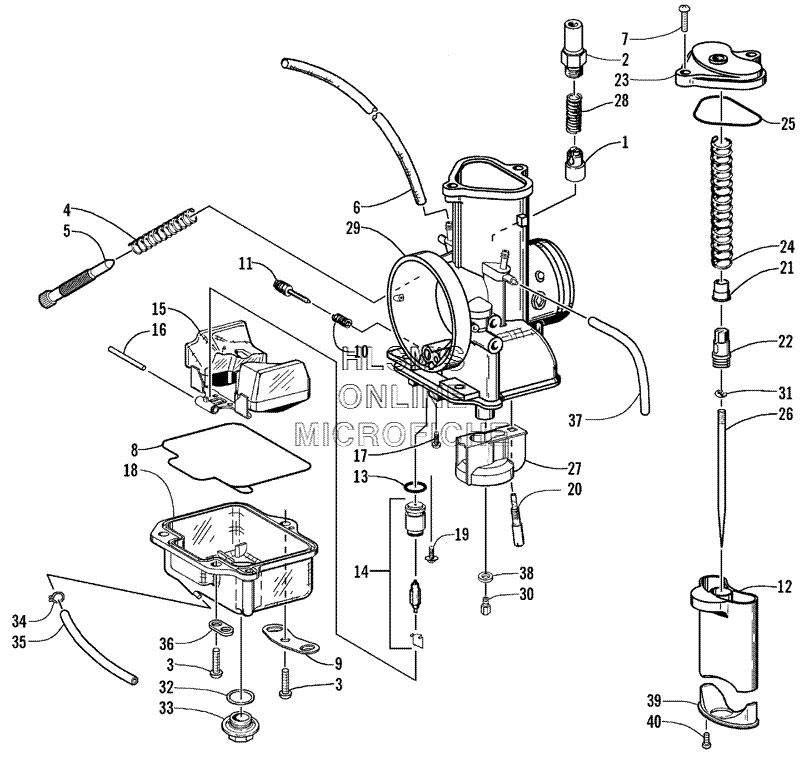

CARBURETOR для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
-1670-104 CARBURETOR ASSY. TMX34, 8CARBURETOR ASSY. TMX34, 8
-
16505-035 PLUNGER, STARTERPLUNGER, STARTER
-
26505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
36505-980 SCREW, MACHINESCREW, MACHINE
-
46505-981 SPRING, IDLE SCREWSPRING, IDLE SCREW
-
56505-982 SCREW, IDLESCREW, IDLE
-
66505-983 HOSE, VENTHOSE, VENT
-
76505-984 SCREW, MACHINESCREW, MACHINE
-
86506-015 GASKET, FLOAT CHAMBER ASSY.GASKET, FLOAT CHAMBER ASSY.
-
96505-986 PLATEPLATE
-
106505-987 SPRING, IDLE AIR SCREWSPRING, IDLE AIR SCREW
-
116505-988 SCREW, IDLE AIRSCREW, IDLE AIR
-
126505-989 VALVE, THROTTLE 3.5VALVE, THROTTLE 3.5
-
126506-172 VALVE, THROTTLE 3.0VALVE, THROTTLE 3.0
-
126505-990 VALVE, THROTTLE 4.0VALVE, THROTTLE 4.0
-
126505-991 VALVE, THROTTLE 4.5VALVE, THROTTLE 4.5
-
136505-672 O-RINGO-RING
-
146506-255 VALVE, NEEDLE 1.5VALVE, NEEDLE 1.5
-
156505-994 CHAMBER, FLOAT, ASSY.CHAMBER, FLOAT, ASSY.
-
166505-995 PIN, FLOATPIN, FLOAT
-
176505-996 SCREW, MACHINESCREW, MACHINE
-
186506-256 BODY, FLOAT, ASSY.BODY, FLOAT, ASSY.
-
196505-998 SCREW, MACHINESCREW, MACHINE
-
206506-002 PILOT JET 22.5PILOT JET 22.5
-
206505-999 PILOT JET 17.5PILOT JET 17.5
-
206506-001 PILOT JET 20PILOT JET 20
-
206506-003 PILOT JET 25PILOT JET 25
-
206506-004 PILOT JET 27.5PILOT JET 27.5
-
206506-005 PILOT JET 30PILOT JET 30
-
216506-006 RINGRING
-
226506-007 HOLDER, GUIDEHOLDER, GUIDE
-
236506-008 CAP, TOPCAP, TOP
-
246506-009 SPRINGSPRING
-
256506-018 GASKETGASKET
-
266506-174 JET NEEDLE 60JET NEEDLE 60
-
266506-011 JET NEEDLE 54JET NEEDLE 54
-
266506-012 JET NEEDLE 55JET NEEDLE 55
-
266506-013 JET NEEDLE 56JET NEEDLE 56
-
276506-014 HOLDER, GUIDEHOLDER, GUIDE
-
286505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
306505-136 MAIN JET 310MAIN JET 310
-
316505-628 E, CLIPE, CLIP
-
326505-243 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
336506-254 PLUG, DRAINPLUG, DRAIN
-
346506-251 CLAMP, HOSECLAMP, HOSE
-
356506-252 HOSEHOSE
-
366505-094 PLATE, HOSEPLATE, HOSE
-
376506-253 HOSEHOSE
-
386506-091 WASHERWASHER
