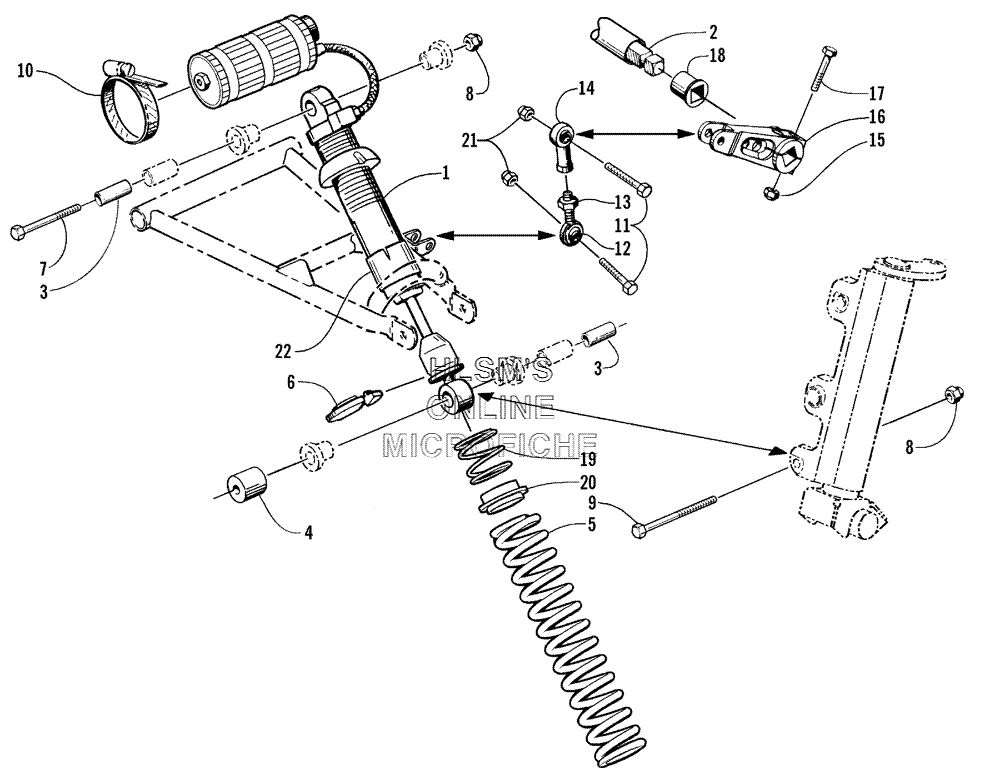

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
10703-718 SHOCK SUSPENSION (FRONT) (RIGHT)SHOCK SUSPENSION (FRONT) (RIGHT)
-
10703-719 SHOCK SUSPENSION (FRONT) (LEFT)SHOCK SUSPENSION (FRONT) (LEFT)
-
20703-202 SWAY BARSWAY BAR
-
30603-436 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
40603-648 SPACER, SHOCKSPACER, SHOCK
-
50703-744 SPRING, COMPRESSION (GREEN)SPRING, COMPRESSION (GREEN)
-
61603-252 RETAINER, SPRINGRETAINER, SPRING
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100214-025 CLAMPCLAMP
-
118002-225 SCREW, CAPSCREW, CAP
-
120605-202 BALL JOINTBALL JOINT
-
130123-191 NUT (RIGHT)NUT (RIGHT)
-
140605-345 BALL JOINTBALL JOINT
-
158040-426 NUT, LOCKNUT, LOCK
-
160603-558 ARM, SWAY BARARM, SWAY BAR
-
178002-137 SCREW, CAPSCREW, CAP
-
181603-211 BEARING, SWAY BARBEARING, SWAY BAR
-
190703-745 SPRING, RIDE, INNER (GREEN)SPRING, RIDE, INNER (GREEN)
-
201603-418 SPACER, ALIGNMENTSPACER, ALIGNMENT
-
218041-486 NUT, LOCKNUT, LOCK
-
221603-271 SLEEVE, WEARSLEEVE, WEAR
