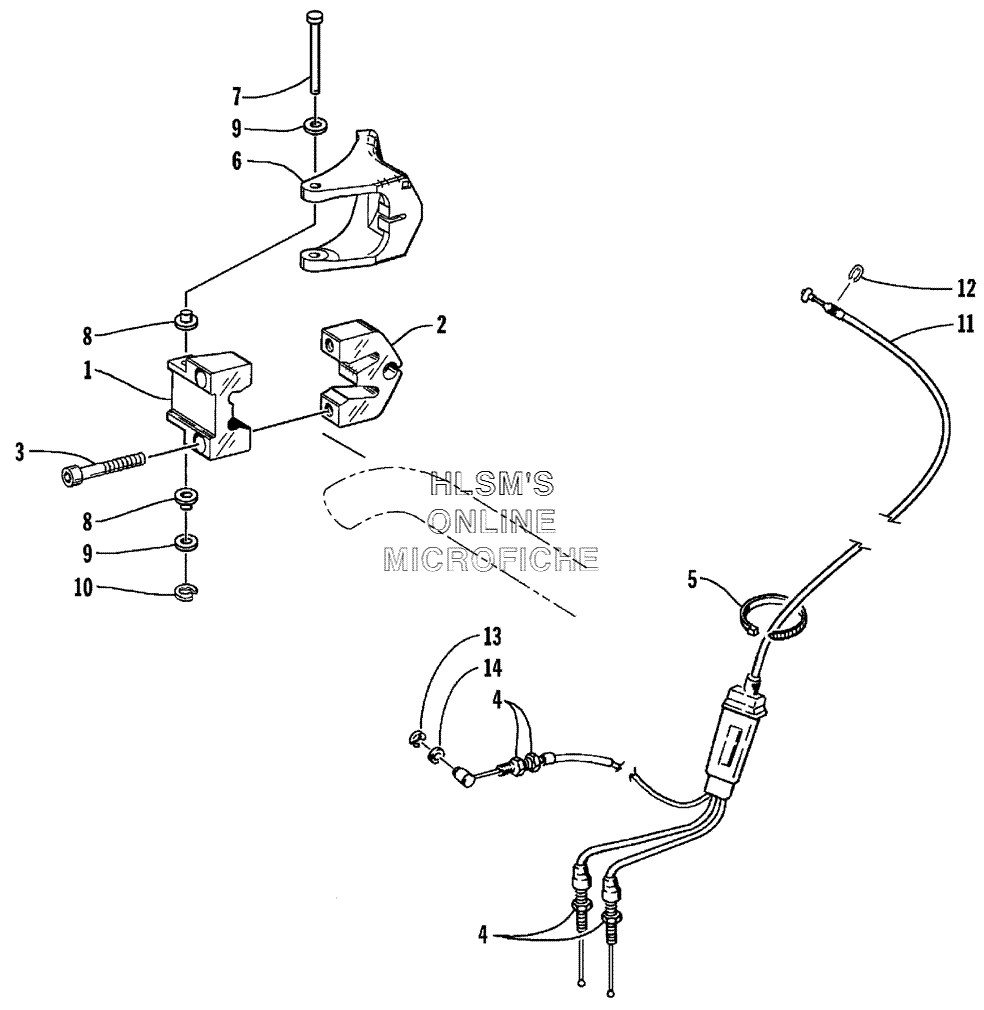

THROTTLE CONTROL ASSY. для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
10605-383 BLOCK, MOUNTING, THROTTLE LEVER (FRONT)BLOCK, MOUNTING, THROTTLE LEVER (FRONT)
-
20605-384 BLOCK, MOUNTING, THROTTLE LEVER (REAR)BLOCK, MOUNTING, THROTTLE LEVER (REAR)
-
38005-494 SCREW, CAPSCREW, CAP
-
40623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
50123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
60609-481 LEVER, THROTTLELEVER, THROTTLE
-
70609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
80609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90609-036 WASHERWASHER
-
100609-040 E, RINGE, RING
-
110687-061 CABLE, THROTTLECABLE, THROTTLE
-
120123-231 RING, RETAININGRING, RETAINING
-
130124-057 E, RINGE, RING
-
140124-056 WASHERWASHER
