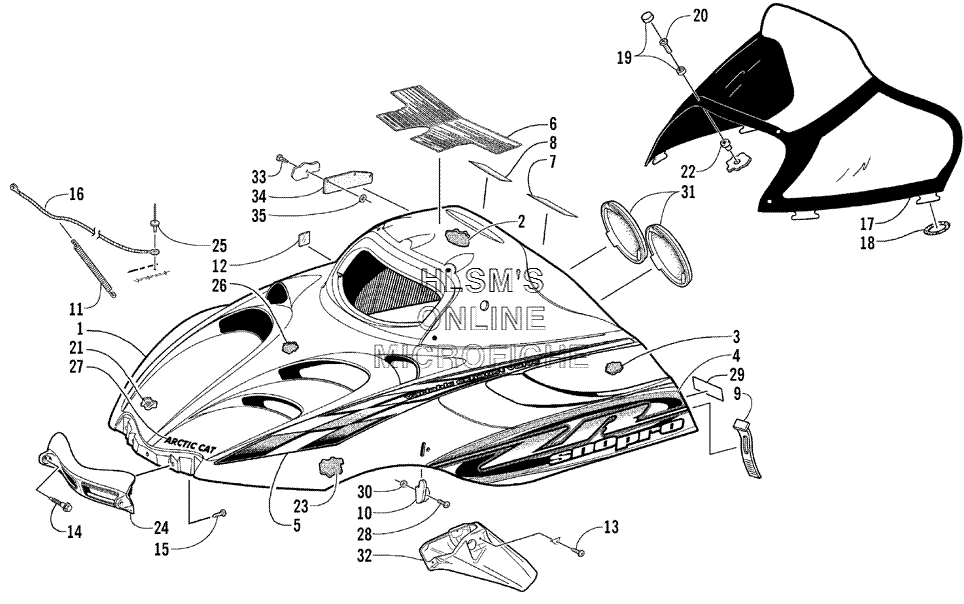

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
10718-870 HOOD W/O DECALSHOOD W/O DECALS
-
10718-871 HOOD W/DECALSHOOD W/DECALS
-
20617-403 FOAM, HOOD (FRONT)FOAM, HOOD (FRONT)
-
30617-398 FOAM, HOOD (UPPER) (RIGHT)FOAM, HOOD (UPPER) (RIGHT)
-
30617-399 FOAM, HOOD (UPPER) (LEFT)FOAM, HOOD (UPPER) (LEFT)
-
43611-760 DECAL, HOOD (LOWER) (RIGHT)DECAL, HOOD (LOWER) (RIGHT)
-
43611-761 DECAL, HOOD (LOWER) (LEFT)DECAL, HOOD (LOWER) (LEFT)
-
53611-762 DECAL, HOOD (UPPER) (RIGHT)DECAL, HOOD (UPPER) (RIGHT)
-
53611-763 DECAL, HOOD (UPPER) (LEFT)DECAL, HOOD (UPPER) (LEFT)
-
63611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
73611-486 DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)
-
83611-487 DECAL, CAUTION, ENGINE/BATTERY (FRENCH)DECAL, CAUTION, ENGINE/BATTERY (FRENCH)
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
101606-441 HOLD, DOWN, HOOD STRAP (LEFT)HOLD, DOWN, HOOD STRAP (LEFT)
-
102606-096 HOLD, DOWN, HOOD STRAP (RIGHT)HOLD, DOWN, HOOD STRAP (RIGHT)
-
110623-199 SPRING, EXTENSIONSPRING, EXTENSION
-
122606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
130623-789 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-077 CABLE, HOODCABLE, HOOD
-
171606-996 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-413 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
211606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230617-400 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
230617-401 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
241706-178 HINGE, HOODHINGE, HOOD
-
258060-508 RIVETRIVET
-
260617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
273611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
288007-430 SCREW, MACHINESCREW, MACHINE
-
293611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
308040-426 NUT, LOCKNUT, LOCK
-
312606-069 PLUG, GAUGE HOLEPLUG, GAUGE HOLE
-
322606-011 DUCT, BRAKEDUCT, BRAKE
-
330623-073 RIVET, PUSHRIVET, PUSH
-
342606-137 INTAKE, AIR, CLOSE, OFFINTAKE, AIR, CLOSE, OFF
-
350623-371 WASHER, NYLONWASHER, NYLON
