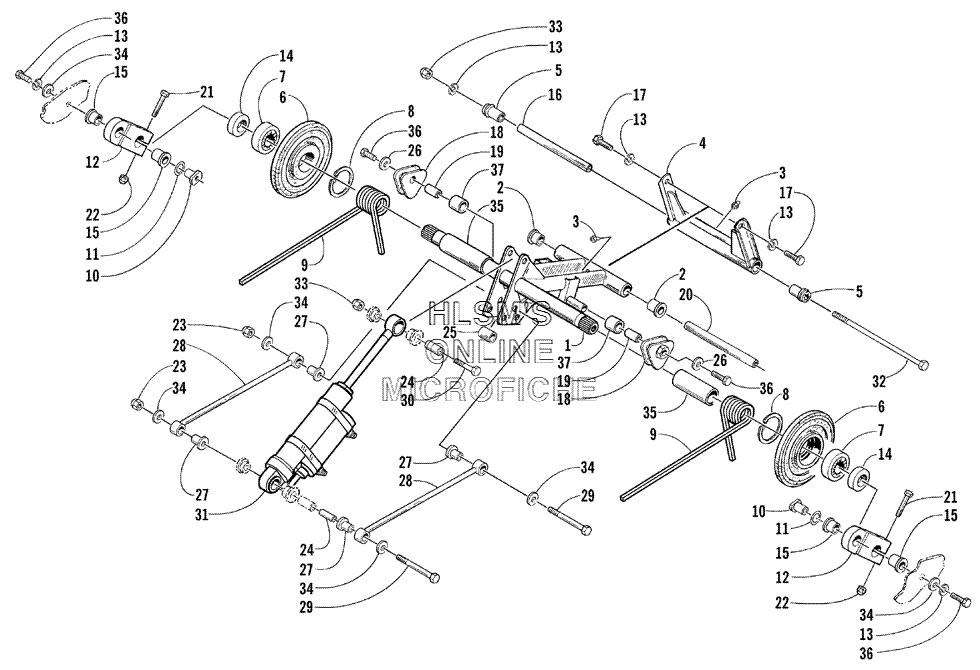

REAR SUSPENSION REAR ARM ASSY. для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
10704-517 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
39916-963 FITTING, GREASEFITTING, GREASE
-
40704-459 ARM (REAR) (INC. ONE NO. 3)ARM (REAR) (INC. ONE NO. 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
60604-374 WHEEL, IDLER (INC. 7, 8)WHEEL, IDLER (INC. 7, 8)
-
70107-598 BEARINGBEARING
-
80123-798 RING, RETAININGRING, RETAINING
-
91604-600 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
91604-601 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
91604-616 SPRING, SUSPENSION, RIGHT HEAVY DUTY (OPT)SPRING, SUSPENSION, RIGHT HEAVY DUTY (OPT)
-
91604-617 SPRING, SUSPENSION, LEFT HEAVY DUTY (OPT)SPRING, SUSPENSION, LEFT HEAVY DUTY (OPT)
-
101604-126 AXLE, FLANGEDAXLE, FLANGED
-
111604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
120704-348 ARM, PIVOT IDLERARM, PIVOT IDLER
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-127 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178002-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
181604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
191604-641 SPACER, SPRING ADJUSTER BLOCKSPACER, SPRING ADJUSTER BLOCK
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUT, LOCKNUT, LOCK
-
238041-486 NUT, LOCK, THINNUT, LOCK, THIN
-
240604-644 SLEEVE, SHOCKSLEEVE, SHOCK
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-272 WASHERWASHER
-
271604-498 AXLE, LINKAXLE, LINK
-
280704-361 LINK REAR SHOCKLINK REAR SHOCK
-
290623-793 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
310704-472 SHOCK ABSORBER ARM (REAR)SHOCK ABSORBER ARM (REAR)
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
371604-678 SPACER, IDLER ARMSPACER, IDLER ARM
