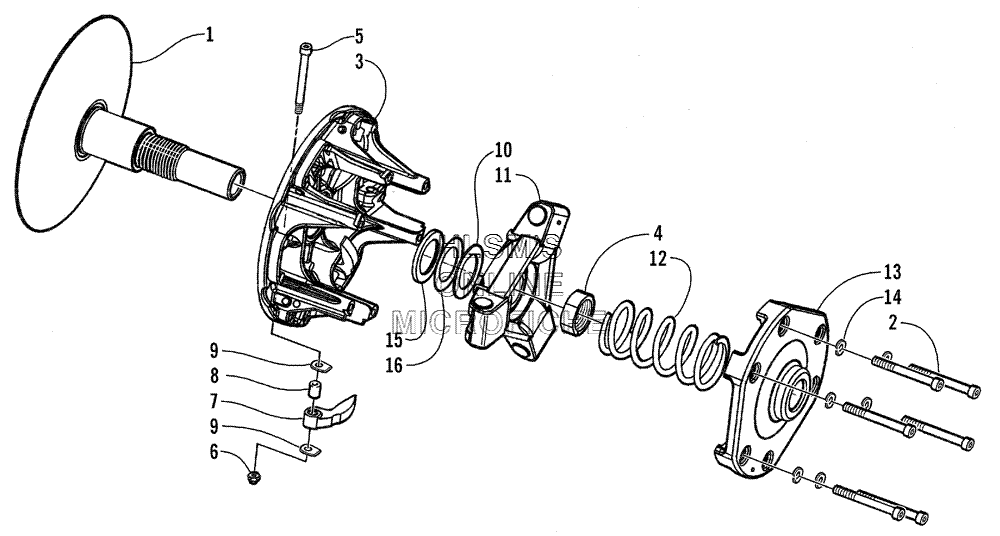

DRIVE CLUTCH для Arctic Cat ZR 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
-0725-313 DRIVE, CLUTCHDRIVE, CLUTCH
-
10646-274 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20623-596 SCREW, CAPSCREW, CAP
-
30646-289 SHEAVE, MOVABLESHEAVE, MOVABLE
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-612 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-094 SPIDER ASSY.SPIDER ASSY.
-
120646-248 SPRING, DRIVE CLUTCH, ORANGE/WHITESPRING, DRIVE CLUTCH, ORANGE/WHITE
-
130646-290 COVERCOVER
-
148051-212 WASHER, LOCKWASHER, LOCK
-
150646-318 WASHER, SPACERWASHER, SPACER
-
160646-266 WASHER, SPACERWASHER, SPACER
