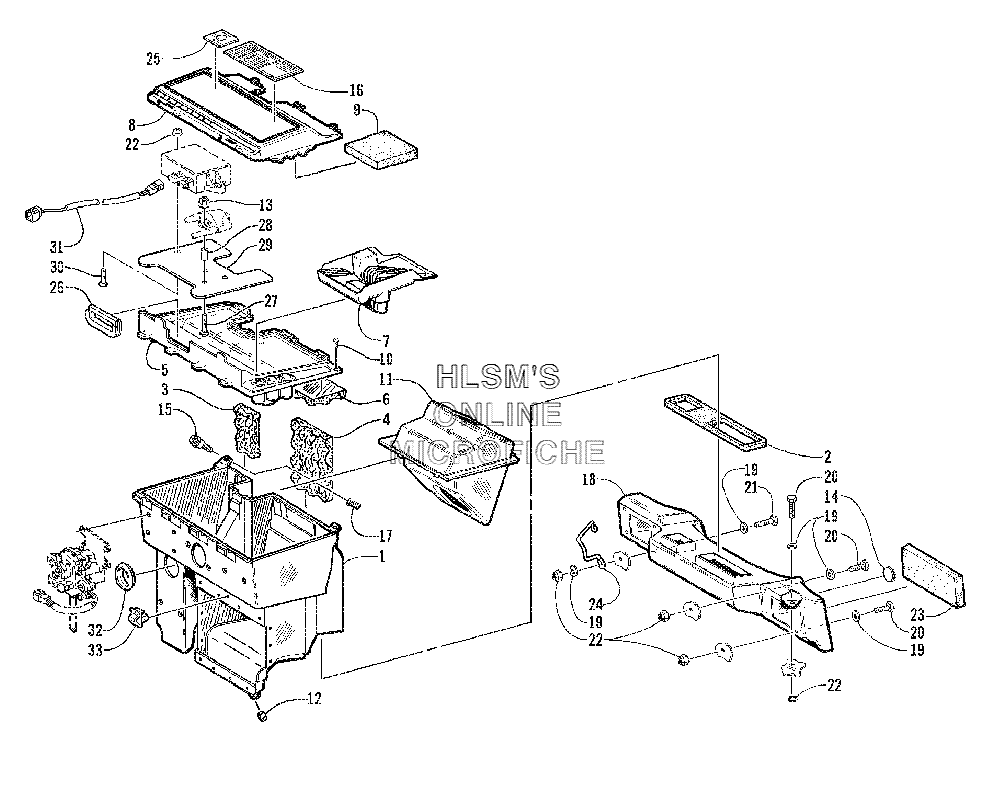

AIR SILENCER ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
10770-496 SILENCER, AIR - ASSEMBLYSILENCER, AIR - ASSEMBLY
-
20617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
30617-252 FOAM, AIR SILENCER - BACK MAGNETOFOAM, AIR SILENCER - BACK MAGNETO
-
40617-253 FOAM, AIR SILENCER - BACK PTOFOAM, AIR SILENCER - BACK PTO
-
50770-468 COVER, AIR SILENCER - ASSEMBLYCOVER, AIR SILENCER - ASSEMBLY
-
60617-251 FOAM, AIR SILENCER - COVERFOAM, AIR SILENCER - COVER
-
70670-826 TRAY, TOOLTRAY, TOOL
-
81670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
90617-294 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
100623-770 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110670-879 RESONATOR, Q-WAVERESONATOR, Q-WAVE
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
138041-276 NUT, LOCKNUT, LOCK
-
140623-078 DISC, VELCRODISC, VELCRO
-
150623-780 SCREW, MACHINE - HEX SHOULDERSCREW, MACHINE - HEX SHOULDER
-
163611-943 DECAL, JET CHARTDECAL, JET CHART
-
170623-779 INSERTINSERT
-
181670-076 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
-
228040-366 NUT, LOCKNUT, LOCK
-
230617-270 FOAM, PLENUM - INTAKEFOAM, PLENUM - INTAKE
-
240645-269 BRACKET, GUARD - HARNESS/ROPEBRACKET, GUARD - HARNESS/ROPE
-
250611-978 DECAL, FUEL SHUT-OFF VALVEDECAL, FUEL SHUT-OFF VALVE
-
260670-827 GROMMETGROMMET
-
270623-412 SCREW, MACHINESCREW, MACHINE
-
280623-866 SPACERSPACER
-
292606-074 PLATE, CDIPLATE, CDI
-
308017-580 SCREW, MACHINESCREW, MACHINE
-
310686-656 HARNESS, EXTENSION - CDIHARNESS, EXTENSION - CDI
-
322606-062 PLUG, CAPPLUG, CAP
-
330623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
