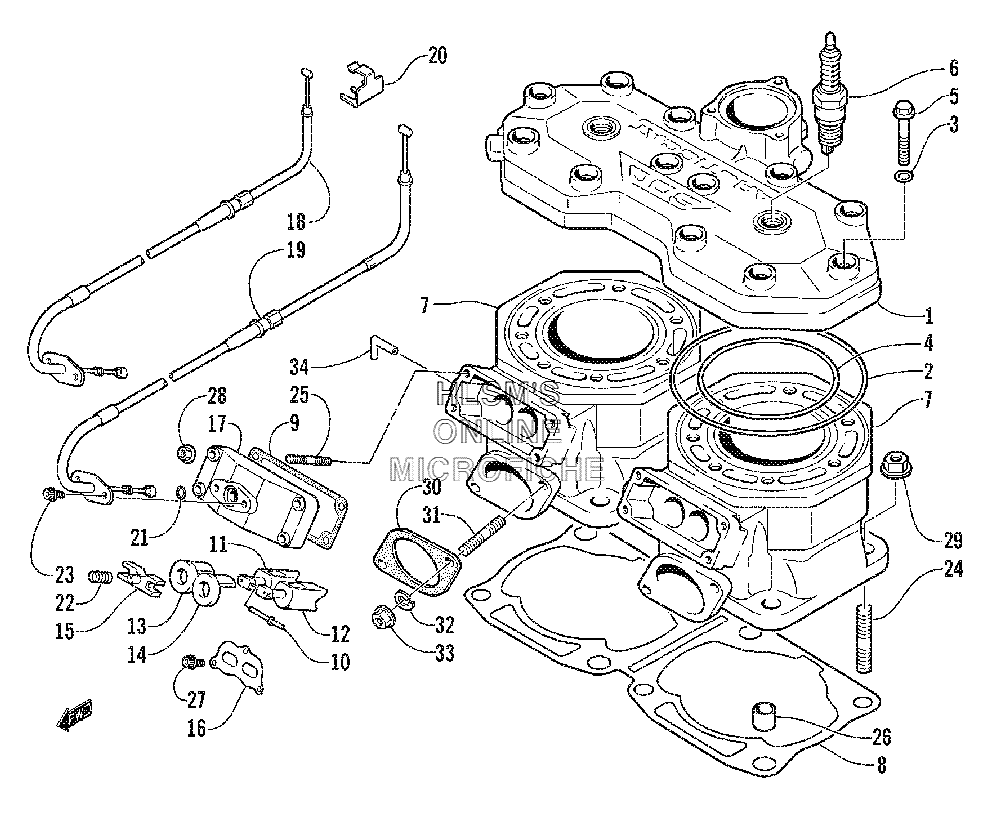

CYLINDER AND HEAD ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
13005-489 HEAD, CYLINDERHEAD, CYLINDER
-
23003-765 O-RING, HEAD - OUTERO-RING, HEAD - OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43004-080 O-RING, HEAD - INNERO-RING, HEAD - INNER
-
53004-459 SCREW, CAPSCREW, CAP
-
60217-709 PLUG, SPARKPLUG, SPARK
-
73005-653 CYLINDERCYLINDER
-
83005-654 GASKET, CYLINDERGASKET, CYLINDER
-
93005-283 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
103005-284 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
113005-656 VALVE, EXHAUST - RIGHTVALVE, EXHAUST - RIGHT
-
123005-657 VALVE, EXHAUST - LEFTVALVE, EXHAUST - LEFT
-
133005-658 GUIDE, EXHAUST VALVE - RIGHTGUIDE, EXHAUST VALVE - RIGHT
-
143005-659 GUIDE, EXHAUST VALVE - LEFTGUIDE, EXHAUST VALVE - LEFT
-
153005-655 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
163005-660 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
173005-662 COVER, CYLINDERCOVER, CYLINDER
-
183005-663 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
193005-746 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
203005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
213005-651 O-RINGO-RING
-
223005-652 SPRINGSPRING
-
233005-744 BOLTBOLT
-
243005-596 BOLT, STUDBOLT, STUD
-
250693-905 BOLT, STUDBOLT, STUD
-
263004-975 PIN, DOWELPIN, DOWEL
-
273005-564 BOLTBOLT
-
283004-488 NUTNUT
-
293004-491 NUTNUT
-
303003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
313004-301 BOLT, STUDBOLT, STUD
-
323004-280 WASHER, LOCKWASHER, LOCK
-
333004-334 NUTNUT
-
343005-589 ELBOWELBOW
