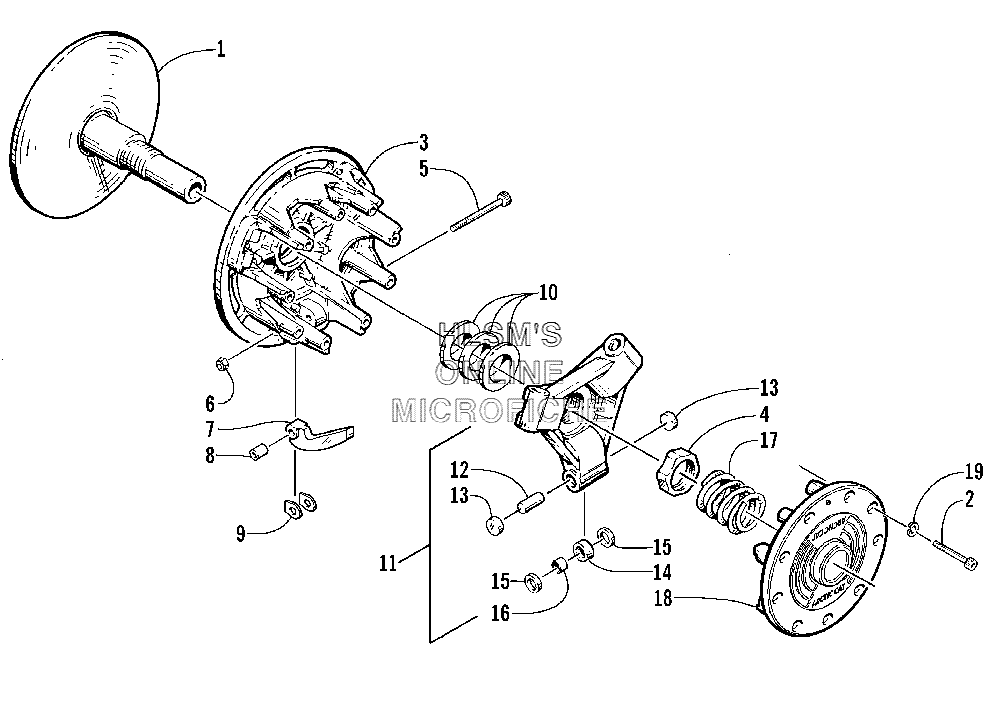

DRIVE CLUTCH для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска

№

Артикул

Название
-

0725-315 CLUTCH, DRIVE ASSEMBLY

CLUTCH, DRIVE ASSEMBLY

127 080 ₽
1

0646-274 SHEAVE, STATIONARY

SHEAVE, STATIONARY

33 690 ₽
2

0623-596 SCREW, MACHINE

SCREW, MACHINE

650 ₽
3

0746-074 SHEAVE, MOVABLE

SHEAVE, MOVABLE

34 940 ₽
4

0646-140 NUT

NUT

2 700 ₽
5

0646-295 PIN, CAM ARM

PIN, CAM ARM

2 280 ₽
6

0623-392 NUT, LOCK

NUT, LOCK

230 ₽
7

0746-587 ARM, CAM (INC 8) (5-9,000 FT ALT)

ARM, CAM (INC 8) (5-9,000 FT ALT)

3 530 ₽
7

0746-592 ARM, CAM (INC 8) (0-5,000 FT ALT)

ARM, CAM (INC 8) (0-5,000 FT ALT)

3 530 ₽
7

0746-523 ARM, CAM (INC 8) (OVER 9,000 FT ALT)

ARM, CAM (INC 8) (OVER 9,000 FT ALT)

2 490 ₽
8

0646-160 BEARING, CAM ARM

BEARING, CAM ARM

2 280 ₽
9

0646-101 WASHER, CAM ARM

WASHER, CAM ARM

150 ₽
10

0646-265 WASHER, SPACER

WASHER, SPACER

480 ₽
11

0746-090 SPIDER ASSEMBLY (INC 12-16)

SPIDER ASSEMBLY (INC 12-16)

42 220 ₽
12

0646-270 PIN, SPIDER

PIN, SPIDER

3 740 ₽
13

0646-293 BUTTON, SPIDER

BUTTON, SPIDER

2 910 ₽
14

0746-067 ROLLER, SPIDER (INC 16)

ROLLER, SPIDER (INC 16)

9 350 ₽
15

0646-294 WASHER, ROLLER

WASHER, ROLLER

2 700 ₽
16

0646-272 BEARING, ROLLER

BEARING, ROLLER

3 950 ₽
17

0646-229 SPRING, DRIVE CLUTCH - YELLOW/WHITE

SPRING, DRIVE CLUTCH - YELLOW/WHITE

8 110 ₽
18

0746-086 COVER

COVER

17 880 ₽
19

8051-212 WASHER, LOCK

WASHER, LOCK

20 ₽
