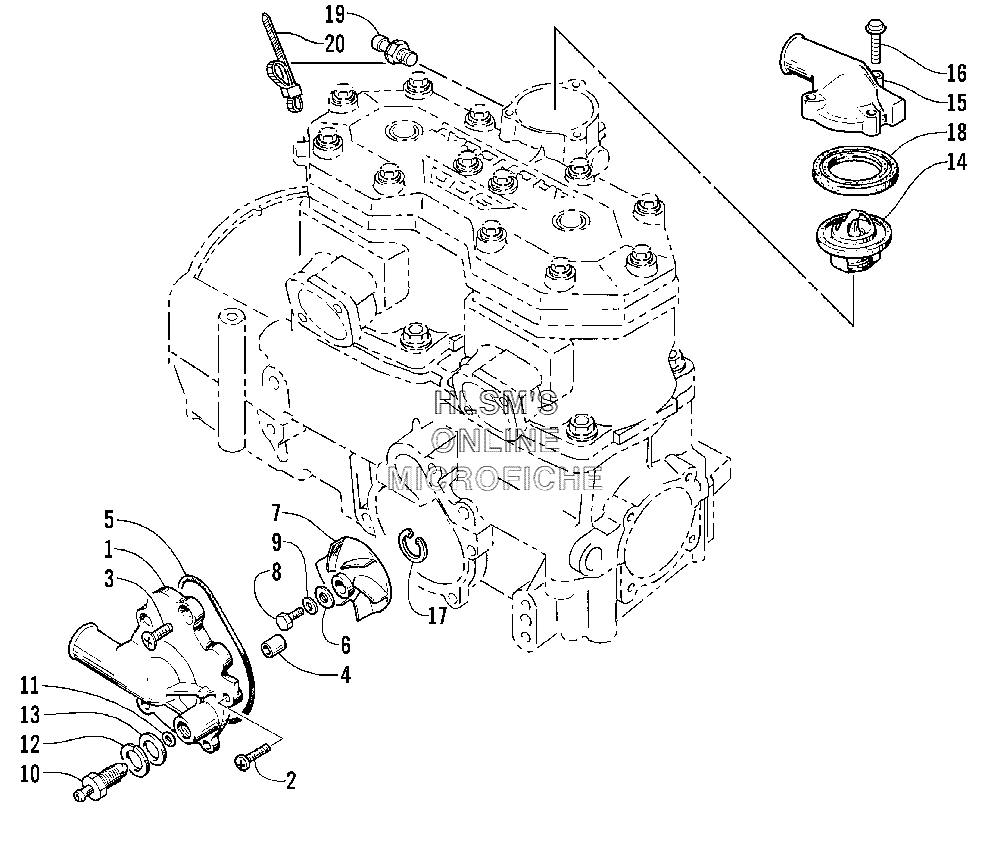

WATER PUMP AND THERMOSTAT для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
13005-519 CASE, WATER PUMPCASE, WATER PUMP
-
23004-402 SCREW, CASESCREW, CASE
-
33004-372 SCREW, CASESCREW, CASE
-
43005-206 PIN, DOWELPIN, DOWEL
-
53003-372 O-RING, CASEO-RING, CASE
-
63003-432 WASHERWASHER
-
73005-697 IMPELLERIMPELLER
-
83003-426 BOLTBOLT
-
93003-431 WASHERWASHER
-
103003-618 DRAINDRAIN
-
113005-226 O-RING, DRAINO-RING, DRAIN
-
123004-472 WASHER, LOCKWASHER, LOCK
-
133004-417 WASHERWASHER
-
143004-964 THERMOSTATTHERMOSTAT
-
153003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
163004-376 BOLTBOLT
-
173004-009 CIRCLIPCIRCLIP
-
183003-495 GASKET, THERMOSTATGASKET, THERMOSTAT
-
190630-140 SWITCH, TEMPERATURESWITCH, TEMPERATURE
-
200623-285 CABLE TIE - DOUBLE LOOPCABLE TIE - DOUBLE LOOP
Все узлы модели:
- AIR SILENCER ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CARBURETOR AND FUEL PUMP ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVE/REVERSE DROPCASE ASSY.
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSEMBLY (OPTIONAL)
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION AND SHOCK ABSORBER
- GAS TANK- RACK- SEAT- AND TAILLIGHT ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL)
- SERVOMOTOR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- • WATER PUMP AND THERMOSTAT
