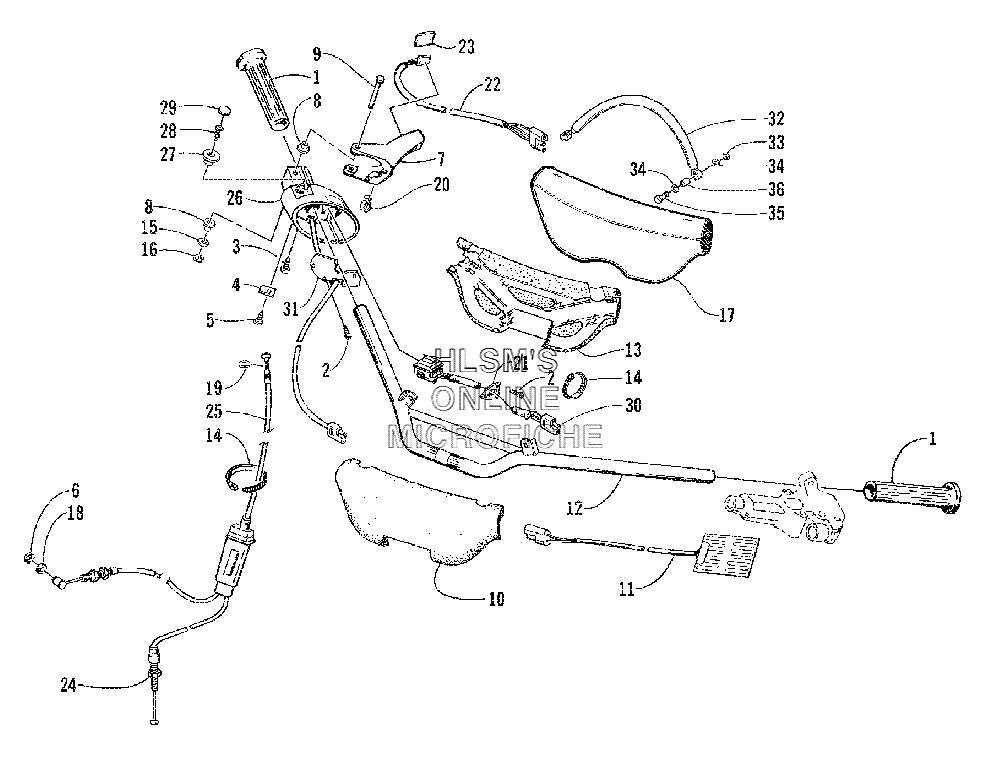

HANDLEBAR AND CONTROLS для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
10117-793 GRIP, HANDLEBARGRIP, HANDLEBAR
-
20609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30609-085 SCREW, MACHINESCREW, MACHINE
-
40609-319 CLAMP, HARNESS - SINGLECLAMP, HARNESS - SINGLE
-
50609-321 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60124-057 E-RINGE-RING
-
70609-477 LEVER, THROTTLELEVER, THROTTLE
-
80609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
100605-416 PAD, HANDLEBAR - FRONTPAD, HANDLEBAR - FRONT
-
110609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
120705-292 HANDLEBARHANDLEBAR
-
130605-417 PAD, HANDLEBAR - REARPAD, HANDLEBAR - REAR
-
140123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
150609-036 WASHERWASHER
-
160609-040 E-RINGE-RING
-
170705-311 WRAP, HANDLEBARWRAP, HANDLEBAR
-
180124-056 WASHERWASHER
-
190123-231 RING, RETAININGRING, RETAINING
-
200623-262 CLIP, WIRECLIP, WIRE
-
210609-378 PLATE, COVERPLATE, COVER
-
220609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230617-248 PAD, INSULATORPAD, INSULATOR
-
240623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
250687-100 CABLE, THROTTLECABLE, THROTTLE
-
260609-386 CONTROL, THROTTLE (INC 2,3,21 AND 27-31)CONTROL, THROTTLE (INC 2,3,21 AND 27-31)
-
270609-282 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
280623-215 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290609-283 DECAL, MARK PLATEDECAL, MARK PLATE
-
300609-382 CONTROL, THUMBWARMERCONTROL, THUMBWARMER
-
310609-316 COVER, THROTTLE SWITCHCOVER, THROTTLE SWITCH
-
320605-448 STRAP, MOUNTAIN - FLEXIBLESTRAP, MOUNTAIN - FLEXIBLE
-
338041-486 NUT, LOCKNUT, LOCK
-
348050-277 WASHERWASHER
-
358002-224 SCREW, CAPSCREW, CAP
-
360623-811 SPACERSPACER
