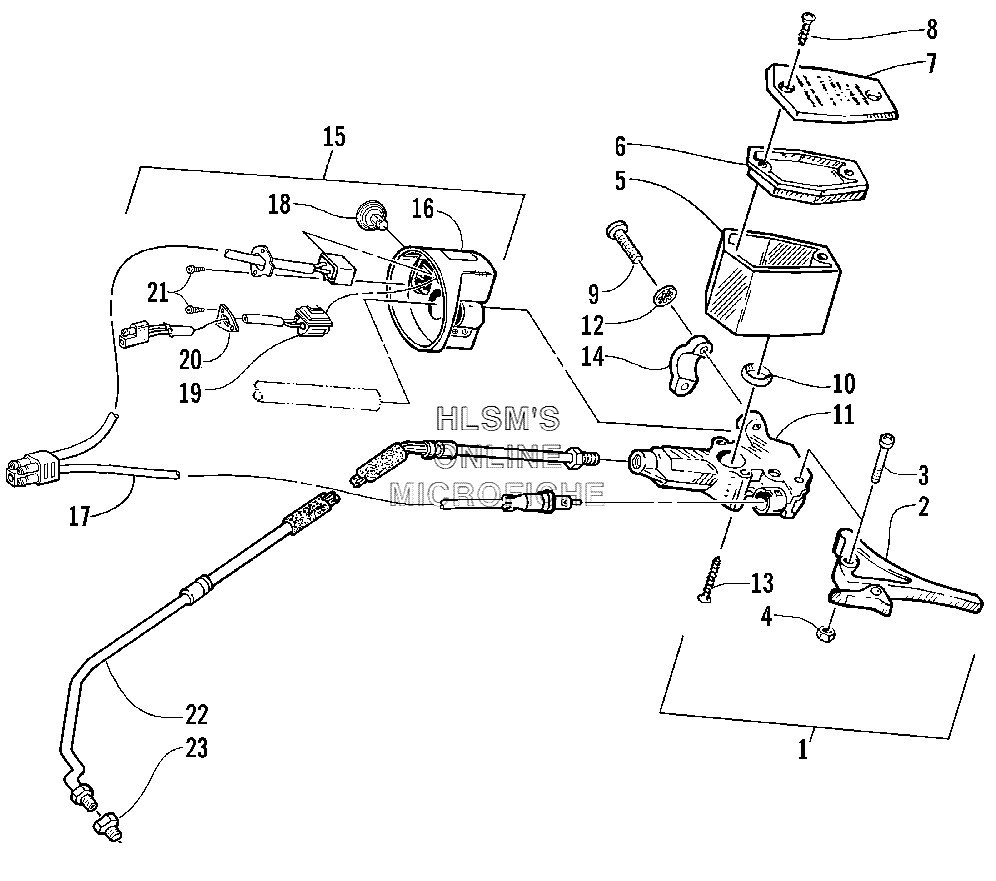

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
10602-943 BRAKE ASSEMBLY (INC 2-14)BRAKE ASSEMBLY (INC 2-14)
-
20602-711 LEVER, BRAKELEVER, BRAKE
-
30623-430 SCREW, LEVER MOUNTINGSCREW, LEVER MOUNTING
-
40623-056 NUT, LOCKNUT, LOCK
-
50602-740 RESERVOIRRESERVOIR
-
60602-741 GASKET, COVERGASKET, COVER
-
70602-742 COVER, RESERVOIRCOVER, RESERVOIR
-
80623-506 SCREW, COVERSCREW, COVER
-
90623-613 SCREW, CAPSCREW, CAP
-
100602-587 O-RINGO-RING
-
128052-212 WASHER, LOCKWASHER, LOCK
-
130623-432 SCREW, MASTER CYLINDER MOUNTINGSCREW, MASTER CYLINDER MOUNTING
-
140602-907 CLAMP, MASTER CYLINDERCLAMP, MASTER CYLINDER
-
140638-315 FLUID, BRAKE - HIGH TEMPERATUREFLUID, BRAKE - HIGH TEMPERATURE
-
150609-406 CONTROL, DIMMER - ASSEMBLY (INC 16-19)CONTROL, DIMMER - ASSEMBLY (INC 16-19)
-
160609-322 HOUSING, DIMMER CONTROLHOUSING, DIMMER CONTROL
-
170609-267 SWITCH, DIMMER AND BRAKE - ASSEMBLYSWITCH, DIMMER AND BRAKE - ASSEMBLY
-
180609-383 SWITCH, HI/LO HANDWARMER - ASSEMBLYSWITCH, HI/LO HANDWARMER - ASSEMBLY
-
190609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200602-944 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
210602-590 FITTING, ADAPTERFITTING, ADAPTER
-
220609-378 PLATE, COVERPLATE, COVER
