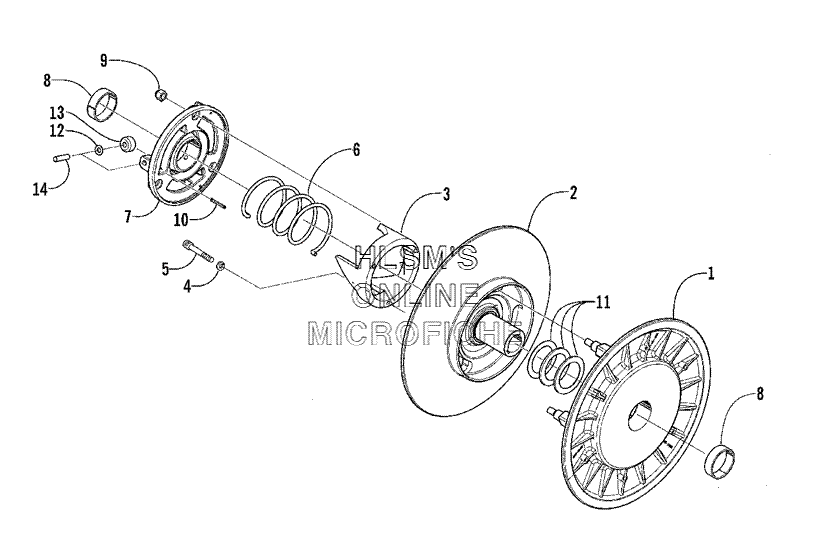

DRIVEN CLUTCH (INTERNATIONAL) для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
0726-122 DRIVE, CLUTCH ASSEMBLYDRIVE, CLUTCH ASSEMBLY
-
10748-019 SHEAVE, MOVABLE (INC ONE NO 8)SHEAVE, MOVABLE (INC ONE NO 8)
-
20748-020 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30148-222 BRACKET, TORQUE 51°BRACKET, TORQUE 51°
-
30648-014 BRACKET, TORQUE 49° (OVER 9,000 FT ALT)BRACKET, TORQUE 49° (OVER 9,000 FT ALT)
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60648-114 SPRING, DRIVEN CLUTCH- RED/WHITESPRING, DRIVEN CLUTCH- RED/WHITE
-
70748-018 PLATE, ROLLER ASSEMBLY (INC 8,10, AND 10)PLATE, ROLLER ASSEMBLY (INC 8,10, AND 10)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
120648-082 WASHER, THRUST - PLASTIC ROLLERWASHER, THRUST - PLASTIC ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
