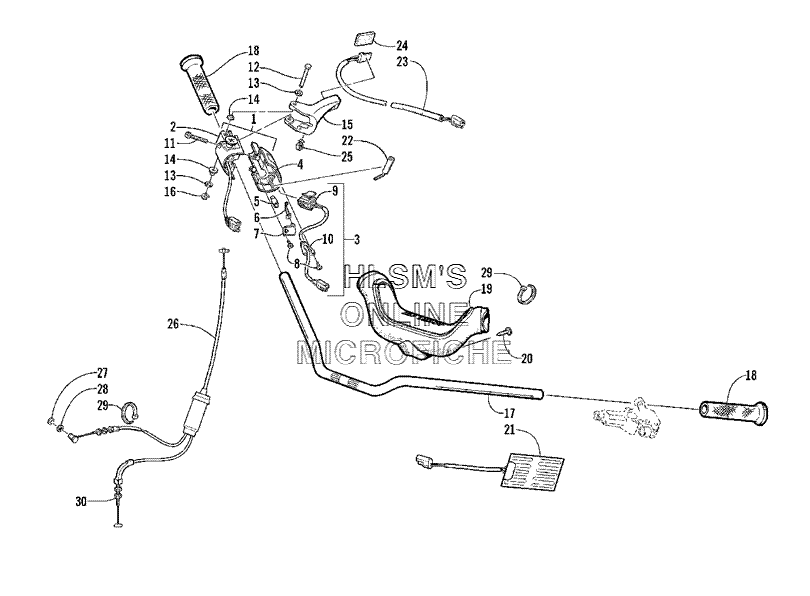

HANDLEBAR AND CONTROLS для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10609-482 CONTROL, THROTTLE (INC 2-11)CONTROL, THROTTLE (INC 2-11)
-
20609-493 CONTROL, THROTTLE - STOP SWITCH HALFCONTROL, THROTTLE - STOP SWITCH HALF
-
30609-500 CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (INC 4-10) (INC NO 8)CONTROL, THROTTLE - THUMBWARMER ASSEMBLY (INC 4-10) (INC NO 8)
-
40609-495 CONTROL, THROTTLE - THUMBWARMER HALF (HIGH/LOW)CONTROL, THROTTLE - THUMBWARMER HALF (HIGH/LOW)
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING - THROTTLE CABLECLIP, RETAINING - THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90609-382 SWITCH, THUMBWARMER ASSEMBLY (INC THREE NO 8 AND 10)SWITCH, THUMBWARMER ASSEMBLY (INC THREE NO 8 AND 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER - THROTTLEWASHER, SHOULDER - THROTTLE
-
150609-368 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-361 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
200623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
221639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
-
230609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INSULATORPAD, INSULATOR
-
250623-262 CLIP, WIRECLIP, WIRE
-
260687-141 CABLE, THROTTLECABLE, THROTTLE
-
270124-057 E-RINGE-RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
300623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
