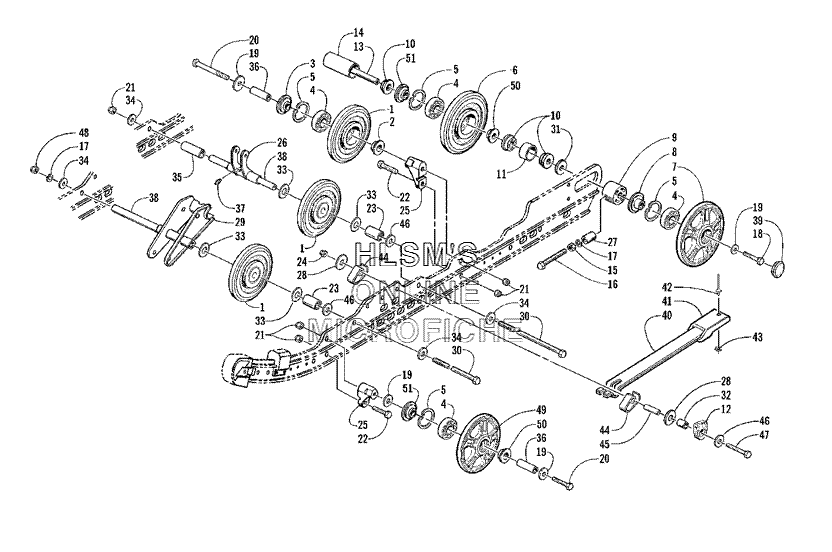

IDLER WHEEL AND AXLE ASSEMBLIES для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC 2-5)WHEEL, IDLER (INC 2-5)
-
20104-341 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
30104-340 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-685 WHEEL, IDLER (INC 4-5 AND 50-51)WHEEL, IDLER (INC 4-5 AND 50-51)
-
71604-692 WHEEL, IDLER (INC 4-5 AND 8)WHEEL, IDLER (INC 4-5 AND 8)
-
81604-774 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
110604-937 SPACER, REAR WHEELSPACER, REAR WHEEL
-
121604-143 SLIDE, SPRINGSLIDE, SPRING
-
130604-208 AXLE, REAR WHEELAXLE, REAR WHEEL
-
141604-107 SPACER, REAR WHEELSPACER, REAR WHEEL
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
188012-223 SCREW, CAPSCREW, CAP
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-224 SCREW, CAPSCREW, CAP
-
231604-477 SPACERSPACER
-
248041-486 NUT, LOCKNUT, LOCK
-
251604-612 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
260704-374 PIVOT, SHOCK (INC 37)PIVOT, SHOCK (INC 37)
-
270604-298 SPACERSPACER
-
280623-746 WASHERWASHER
-
290704-396 BRACKET, MOUNTING - FRONT SHOCKBRACKET, MOUNTING - FRONT SHOCK
-
300623-105 SCREW, CAPSCREW, CAP
-
310623-220 WASHERWASHER
-
321604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
330623-675 WASHERWASHER
-
348050-277 WASHERWASHER
-
350603-105 SPACERSPACER
-
360603-030 AXLE, SERRATEDAXLE, SERRATED
-
379916-963 FITTING, GREASEFITTING, GREASE
-
381604-592 AXLE, STEELAXLE, STEEL
-
390604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
401604-457 SPRING, OVERLOAD ASSEMBLY (INC 41-44)SPRING, OVERLOAD ASSEMBLY (INC 41-44)
-
411604-378 BLOCK, WEARBLOCK, WEAR
-
428060-411 RIVETRIVET
-
430123-149 WASHERWASHER
-
441604-412 CLIP, RETAININGCLIP, RETAINING
-
450604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
468050-282 WASHERWASHER
-
478002-231 SCREW, CAPSCREW, CAP
-
480623-026 NUT, LOCKNUT, LOCK
-
491604-691 WHEEL, IDLER (INC 4-5 AND 50-51)WHEEL, IDLER (INC 4-5 AND 50-51)
-
501604-773 INSERT, WHEEL - OUTSIDEINSERT, WHEEL - OUTSIDE
-
511604-772 INSERT, WHEEL - INSIDEINSERT, WHEEL - INSIDE
