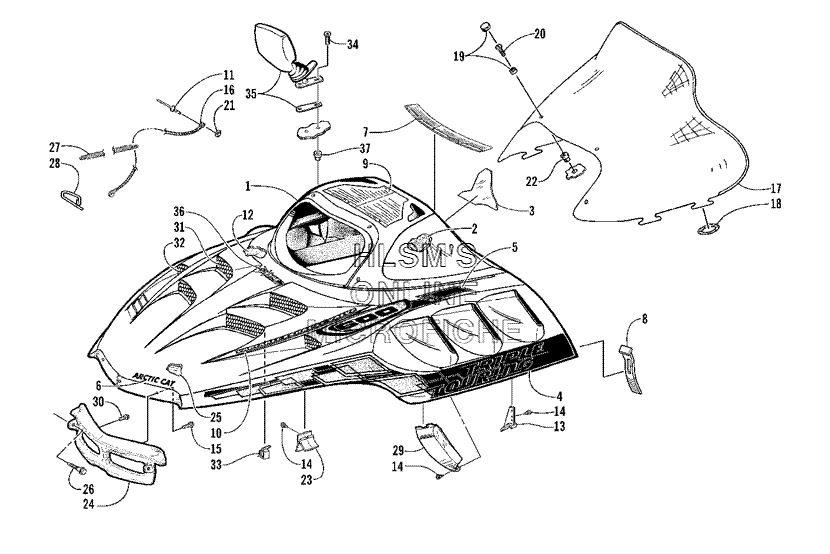

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
11718-003 HOOD W/O DECALSHOOD W/O DECALS
-
11718-004 HOOD W/DECALSHOOD W/DECALS
-
20717-112 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
20717-113 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
33611-364 DECAL, REVERSEDECAL, REVERSE
-
43611-816 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
43611-817 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
53611-771 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
53611-772 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
63611-455 DECAL, ''ARCTIC CAT'' - HOODDECAL, ''ARCTIC CAT'' - HOOD
-
74611-010 DECAL, CAUTION - ENGINE/BATTERY/FUELDECAL, CAUTION - ENGINE/BATTERY/FUEL
-
81606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
93611-360 DECAL, WARNINGDECAL, WARNING
-
103611-857 DECAL, ''VEV'' - HOODDECAL, ''VEV'' - HOOD
-
118061-708 RIVETRIVET
-
120717-136 FOAM, HOOD - RIGHTFOAM, HOOD - RIGHT
-
120717-137 FOAM, HOOD - LEFTFOAM, HOOD - LEFT
-
131606-321 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-790 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161606-637 CABLE, HOODCABLE, HOOD
-
171606-323 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
210123-802 WASHERWASHER
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
231606-622 GUIDE, HOOD - FRONTGUIDE, HOOD - FRONT
-
241606-324 HINGE, HOODHINGE, HOOD
-
250619-206 TAPE, FOILTAPE, FOIL
-
260623-777 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
270123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
280115-528 HOOK, CABLEHOOK, CABLE
-
291606-632 PLUG, VENT - RIGHTPLUG, VENT - RIGHT
-
291606-633 PLUG, VENT - LEFTPLUG, VENT - LEFT
-
300623-791 SCREWSCREW
-
311606-584 SCREEN, VENT - HOOD - CENTER - RIGHTSCREEN, VENT - HOOD - CENTER - RIGHT
-
311606-607 SCREEN, VENT - HOOD - CENTER - LEFTSCREEN, VENT - HOOD - CENTER - LEFT
-
321606-580 SCREEN, VENT - HOOD - RIGHTSCREEN, VENT - HOOD - RIGHT
-
321606-581 SCREEN, VENT - HOOD - LEFTSCREEN, VENT - HOOD - LEFT
-
330123-394 CLIP, RETAININGCLIP, RETAINING
-
340123-549 SCREW, MACHINESCREW, MACHINE
-
350636-630 MIRROR - RIGHT (INC 34 AND 37)MIRROR - RIGHT (INC 34 AND 37)
-
350636-631 MIRROR - LEFT (INC 34 AND 37)MIRROR - LEFT (INC 34 AND 37)
-
363611-581 DECAL, ''ESR''DECAL, ''ESR''
-
370123-010 NUT, EXPANSIONNUT, EXPANSION
