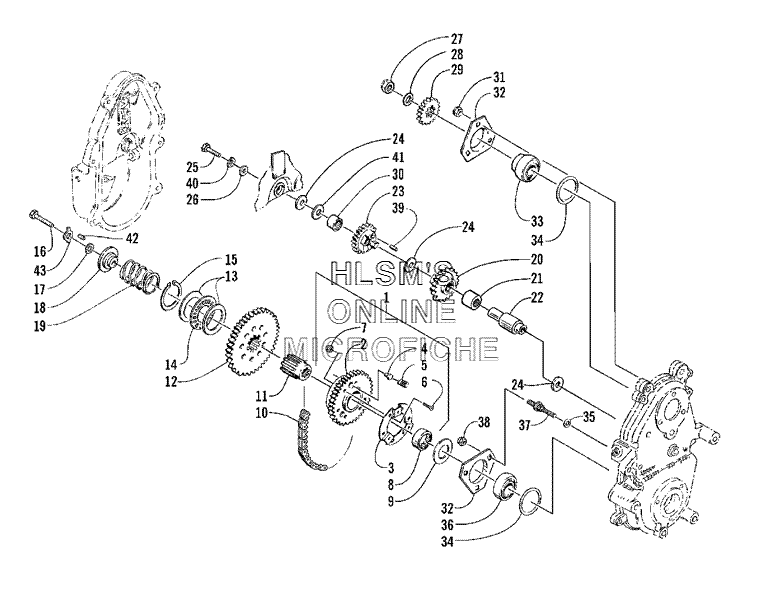

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10702-170 SPROCKET ASSEMBLY - 39T (INC 2-8) (INTER) (OVER 5,000 FT ALT)SPROCKET ASSEMBLY - 39T (INC 2-8) (INTER) (OVER 5,000 FT ALT)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-041 CHAIN - 70P (INTER) (OVER 5,000 FT ALT)CHAIN - 70P (INTER) (OVER 5,000 FT ALT)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE - 55T (INC 13-15)GEAR, REVERSE - 55T (INC 13-15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
168002-231 SCREW, CAPSCREW, CAP
-
178050-272 WASHERWASHER
-
180702-372 RETAINER, SHAFT (INC 42)RETAINER, SHAFT (INC 42)
-
190602-028 SPRING, RETURNSPRING, RETURN
-
200602-871 IDLER, REVERSE ASSEMBLY - 24T (INTER)IDLER, REVERSE ASSEMBLY - 24T (INTER)
-
210602-205 BEARING, CAGEDBEARING, CAGED
-
220602-872 SHAFT, REVERSESHAFT, REVERSE
-
230702-365 IDLER, REVERSE ASSEMBLY - 19T (INC 30)IDLER, REVERSE ASSEMBLY - 19T (INC 30)
-
240602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
258002-130 SCREW, CAPSCREW, CAP
-
268050-242 WASHERWASHER
-
270623-465 NUT, LOCKNUT, LOCK
-
280623-231 WASHER, SPRINGWASHER, SPRING
-
290602-452 SPROCKET - 23TSPROCKET - 23T
-
290602-444 SPROCKET - 19T (INTER) (OVER 5,000 FT ALT)SPROCKET - 19T (INTER) (OVER 5,000 FT ALT)
-
301602-045 BEARINGBEARING
-
318041-426 NUT, LOCKNUT, LOCK
-
320602-198 PLATE, FLANGEPLATE, FLANGE
-
331602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
341670-237 SEAL, O-RINGSEAL, O-RING
-
350607-025 O-RING, STUDO-RING, STUD
-
361602-051 BEARING, 1 IN.BEARING, 1 IN.
-
370623-317 STUD, RIBBEDSTUD, RIBBED
-
388040-426 NUT, LOCKNUT, LOCK
-
390602-366 ALIGNER, IDLER - PINALIGNER, IDLER - PIN
-
408051-242 WASHER, LOCKWASHER, LOCK
-
411602-044 WASHER, THRUSTWASHER, THRUST
-
428070-153 PIN, SPRINGPIN, SPRING
-
431602-046 WASHER, TAB LOCKWASHER, TAB LOCK
