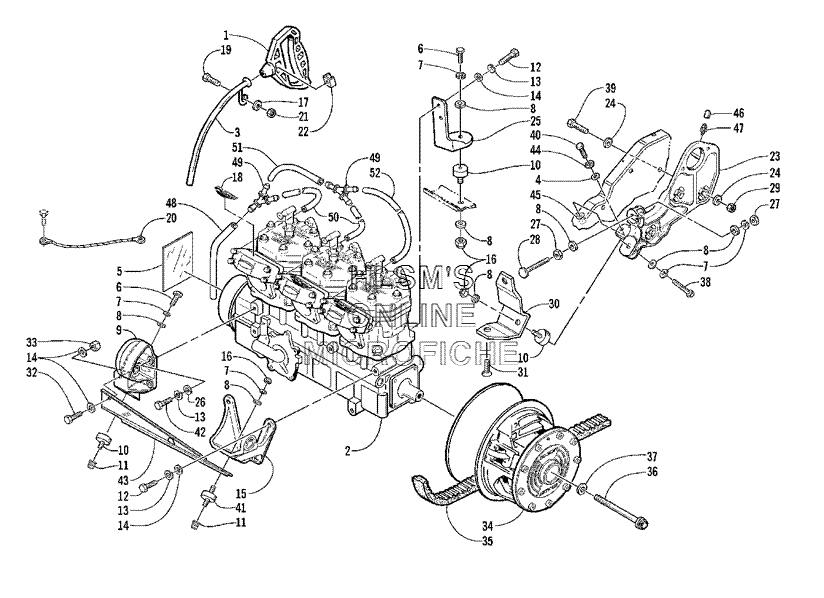

ENGINE AND RELATED PARTS для Arctic Cat TRIPLE TOURING 600 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10636-363 HANDLE, RECOILHANDLE, RECOIL
-
20662-278 ENGINE, AG60L7ENGINE, AG60L7
-
30708-088 GUIDE, RECOIL ROPEGUIDE, RECOIL ROPE
-
48050-222 WASHERWASHER
-
50706-990 FOILFOIL
-
68002-222 SCREW, CAPSCREW, CAP
-
78051-277 WASHER, LOCKWASHER, LOCK
-
88050-277 WASHER, FLATWASHER, FLAT
-
90745-130 BRACKET, ENGINE MOUNT - FRONT RIGHTBRACKET, ENGINE MOUNT - FRONT RIGHT
-
100608-251 MOUNT, ENGINEMOUNT, ENGINE
-
110623-699 INSERT, THREADEDINSERT, THREADED
-
128013-132 SCREW, CAPSCREW, CAP
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148050-247 WASHERWASHER
-
150745-131 BRACKET, ENGINE MOUNT - LEFT FRONTBRACKET, ENGINE MOUNT - LEFT FRONT
-
168040-486 NUT, LOCKNUT, LOCK
-
178050-217 WASHERWASHER
-
183611-967 DECAL, ''APV''DECAL, ''APV''
-
198002-045 SCREW, CAPSCREW, CAP
-
200686-126 WIRE, ENGINE GROUNDWIRE, ENGINE GROUND
-
218040-366 NUT, LOCKNUT, LOCK
-
220606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
230708-144 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC 46-47)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC 46-47)
-
240623-044 WASHERWASHER
-
250708-020 BRACKET, ENGINE MOUNT - RIGHT REARBRACKET, ENGINE MOUNT - RIGHT REAR
-
268050-252 WASHERWASHER
-
278042-516 NUTNUT
-
280608-299 BUMPER, TORQUE - ENGINEBUMPER, TORQUE - ENGINE
-
290623-026 NUT, LOCKNUT, LOCK
-
300708-021 BRACKET, ENGINE MOUNT - LEFT REARBRACKET, ENGINE MOUNT - LEFT REAR
-
310623-095 SCREW, MACHINESCREW, MACHINE
-
328002-132 SCREW, CAPSCREW, CAP
-
338040-426 NUT, LOCKNUT, LOCK
-
340725-334 CLUTCH, DRIVE (INTER)CLUTCH, DRIVE (INTER)
-
350627-014 BELT, DRIVE (INTER)BELT, DRIVE (INTER)
-
360623-804 BOLT, CLUTCHBOLT, CLUTCH
-
370623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
388002-226 SCREW, CAPSCREW, CAP
-
390623-628 SCREW, CAPSCREW, CAP
-
408002-040 SCREW, CAPSCREW, CAP
-
410608-250 MOUNT, ENGINE - DOUBLE MALEMOUNT, ENGINE - DOUBLE MALE
-
428013-133 SCREW, CAPSCREW, CAP
-
430645-303 BRACKET, ENGINE CROSSBRACEBRACKET, ENGINE CROSSBRACE
-
448051-217 WASHER, LOCKWASHER, LOCK
-
450623-581 INSERTINSERT
-
460623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
470623-899 FITTING, GREASEFITTING, GREASE
-
480610-445 HOSE, DRAIN - 13 IN.HOSE, DRAIN - 13 IN.
-
490670-875 Y-FITTINGY-FITTING
-
500610-429 HOSE, DRAIN - 5.5 IN.HOSE, DRAIN - 5.5 IN.
-
510610-446 HOSE, DRAIN - 5.5 IN.HOSE, DRAIN - 5.5 IN.
-
520610-447 HOSE, DRAIN - 11 IN.HOSE, DRAIN - 11 IN.
