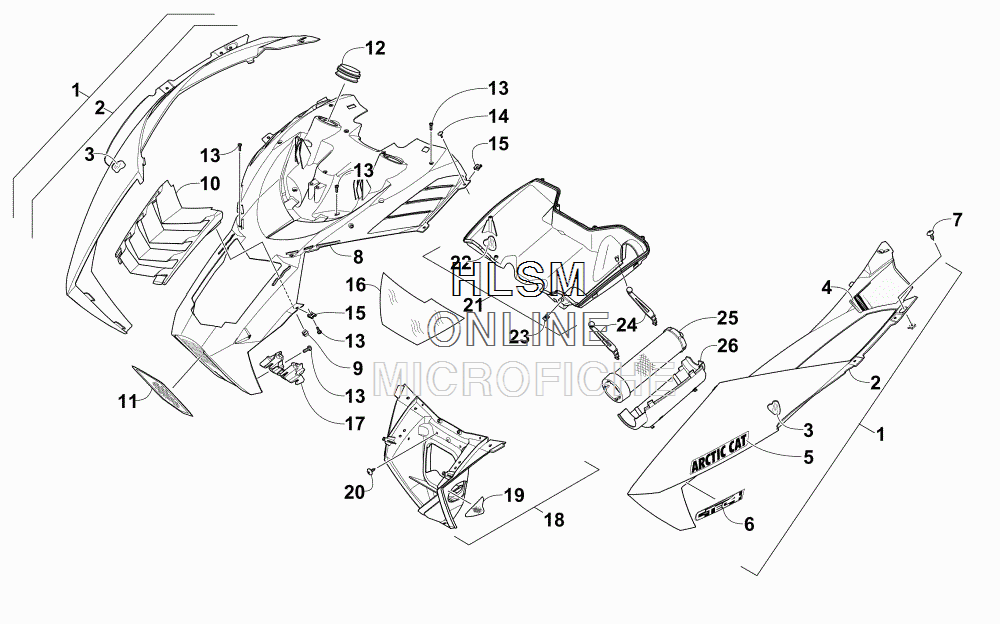

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-264 HOOD W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND ONE NO. 6)
-
23718-264 ...HOOD W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3)...HOOD W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3)
-
36606-420 ......FOIL, PROTECTIVE - RIGHT......FOIL, PROTECTIVE - RIGHT
-
41621-532 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
14718-265 HOOD W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 2-4, ONE NO. 5, AND ONE NO. 6)
-
23718-837 ...HOOD W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 3)...HOOD W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 3)
-
36606-415 ......FOIL, PROTECTIVE - LEFT......FOIL, PROTECTIVE - LEFT
-
41621-533 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
50621-755 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
60621-993 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
70623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
86606-276 PLENUM,AIR INTAKE-UPPER-TURBO-ROUTEDPLENUM,AIR INTAKE-UPPER-TURBO-ROUTED
-
91623-765 CLIP, RETAININGCLIP, RETAINING
-
106606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
110608-696 SCREEN, VENTSCREEN, VENT
-
126606-386 BOOT, INTAKEBOOT, INTAKE
-
131623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151623-939 CLIP, U-NUTCLIP, U-NUT
-
166606-421 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
176606-822 RETAINER, PLENUMRETAINER, PLENUM
-
185706-991 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (T) (INC. 19)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (T) (INC. 19)
-
190621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
201623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
215706-380 PLENUM, INTAKE - LOWER REAR (INC. 22)PLENUM, INTAKE - LOWER REAR (INC. 22)
-
226606-422 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
231623-023 CLIP, U-NUTCLIP, U-NUT
-
246606-392 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
252670-265 FILTER, AIRFILTER, AIR
-
266606-365 COVER,AIR FILTERCOVER,AIR FILTER
