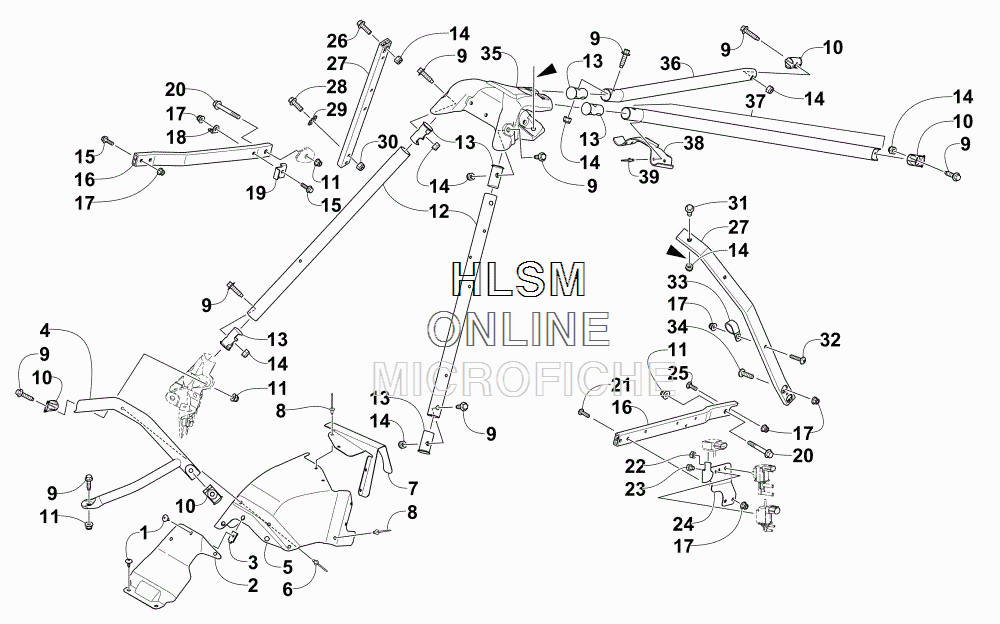

STEERING SUPPORT ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22612-675 SHIELD, HEAT - FORWARDSHIELD, HEAT - FORWARD
-
31623-052 CLIP, U-NUTCLIP, U-NUT
-
41707-369 SUPPORT, SHOCK MOUNT BRACKET - BLACKSUPPORT, SHOCK MOUNT BRACKET - BLACK
-
52612-674 SHIELD, HEAT - CENTERSHIELD, HEAT - CENTER
-
68060-686 RIVET,BLIND-DH SS64 ZINCRIVET,BLIND-DH SS64 ZINC
-
72612-673 SHIELD, HEAT - REARSHIELD, HEAT - REAR
-
88060-682 RIVET,BLIND-DH SS62 ZINCRIVET,BLIND-DH SS62 ZINC
-
91623-982 SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPTSCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
-
101607-002 INSERT,UPPER SPARINSERT,UPPER SPAR
-
118427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
122707-424 SPAR, FRONT - (BLACK)SPAR, FRONT - (BLACK)
-
131607-094 INSERT,SPAR-MALEINSERT,SPAR-MALE
-
148422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & YNUT,HEX-THK NYL M8X1.25 CL8 Z & Y
-
158408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
160607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
160607-249 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
178427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
182612-707 TAB, SPRINGTAB, SPRING
-
192612-783 BRACKET, SUPPORT - RESONATORBRACKET, SUPPORT - RESONATOR
-
208408-885 SCREW,CAP-HFH M8X1.25X85 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X85 CL8.8 Z & Y
-
218470-630 SCREW,MACH-TSPNH M6X1.0X30 CL8.8 Z & YSCREW,MACH-TSPNH M6X1.0X30 CL8.8 Z & Y
-
220623-038 NUT,HEX M6 Z & Y-SEMS (W/WASHER)NUT,HEX M6 Z & Y-SEMS (W/WASHER)
-
231623-451 BOLT, STARTER MOTOR-HH SEMS M5X0.8X8 Z & YBOLT, STARTER MOTOR-HH SEMS M5X0.8X8 Z & Y
-
240645-672 BRACKET, MOUNTING - SENSORBRACKET, MOUNTING - SENSOR
-
251623-917 BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8
-
268408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
270607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
270607-309 SUPPORT, SIDE - REAR LEFTSUPPORT, SIDE - REAR LEFT
-
288408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
-
298053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & YWASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
-
308422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & YNUT,HEX-THK NYL M6X1.00 CL8 Z & Y
-
318408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
-
328476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & YSCREW,MACH-TSTRH M6X1.0X25 Z & Y
-
330423-044 CLAMP,TUBE-1" ARDEN(COV 1709 ZI)CLAMP,TUBE-1" ARDEN(COV 1709 ZI)
-
348476-616 SCREW,MACH-TSTRH M6X1.0X16 Z & YSCREW,MACH-TSTRH M6X1.0X16 Z & Y
-
351707-565 SUPPORT, STEERING - (BLACK)SUPPORT, STEERING - (BLACK)
-
361707-566 SPAR, REAR - RIGHT - (BLACK)SPAR, REAR - RIGHT - (BLACK)
-
375706-225 BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
-
386606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
398060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
