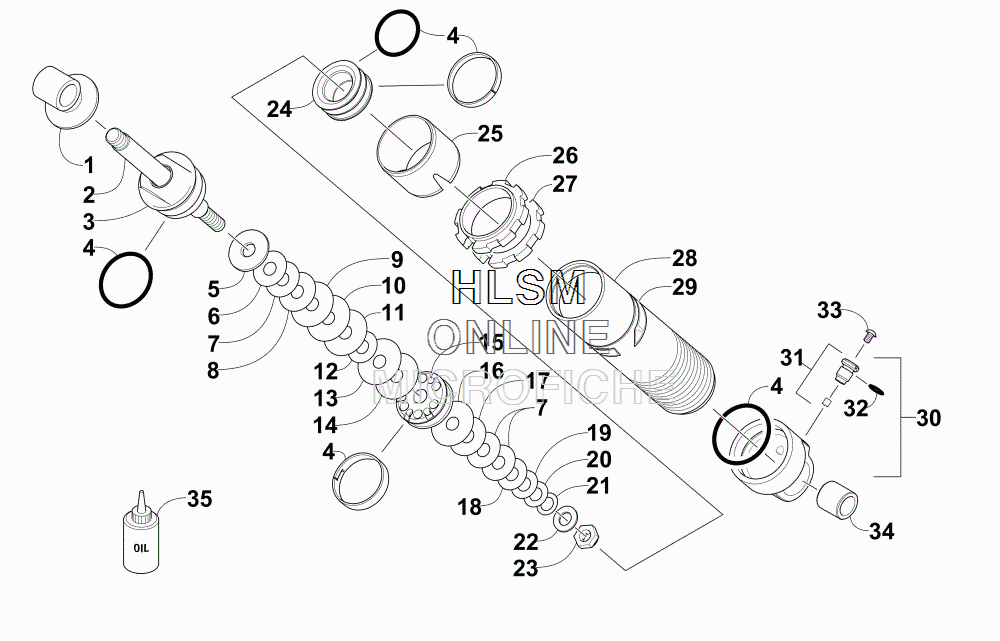

SUSPENSION REAR - FRONT ARM SHOCK ABSORBER для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-413 SHOCK ABSORBERSHOCK ABSORBER
-
13604-797 EYELET, SHOCKEYELET, SHOCK
-
23604-763 ROD, SHOCKROD, SHOCK
-
34604-125 BEARING, ENDCAP - SHORT W/BLEED - ASSEMBLYBEARING, ENDCAP - SHORT W/BLEED - ASSEMBLY
-
44604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
53604-789 WASHER, TOP OUTWASHER, TOP OUT
-
63603-124 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
73603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
83603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
93603-176 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
103603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
113603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
123603-114 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
133603-184 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
143603-182 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
152603-998 PISTON, 0.063 IN. - ORIFICEPISTON, 0.063 IN. - ORIFICE
-
163603-174 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
173603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
183603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
193603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
203603-094 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
212603-015 VALVE, 0.550 X 0.020 IN.VALVE, 0.550 X 0.020 IN.
-
223604-775 WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)
-
233604-739 NUT, HEX - 3/8"-24UNFNUT, HEX - 3/8"-24UNF
-
243604-772 PISTON, FLOATING ASSEMBLYPISTON, FLOATING ASSEMBLY
-
253604-773 SLEEVE, WEAR GUIDE,SPRING-ALUM BODYSLEEVE, WEAR GUIDE,SPRING-ALUM BODY
-
262603-014 NUT, ADJUSTER RING,PRELOAD LOCK-SHOULDEREDNUT, ADJUSTER RING,PRELOAD LOCK-SHOULDERED
-
273604-779 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
283604-758 BODY, SHOCKBODY, SHOCK
-
291621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
302704-257 END CAP, SHOCK - ASSEMBLY (INC. 31-32)END CAP, SHOCK - ASSEMBLY (INC. 31-32)
-
313604-751 ...VALVE, PRESSURE (INC. 32)...VALVE, PRESSURE (INC. 32)
-
323604-733 ......O-RING, VALVE......O-RING, VALVE
-
333604-750 SCREW.MACH-#8-32 X 5MM-SSSCREW.MACH-#8-32 X 5MM-SS
-
343604-906 BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54
-
355639-530 SEMI-SYN SHOCK OIL-1 QUARTSEMI-SYN SHOCK OIL-1 QUART
