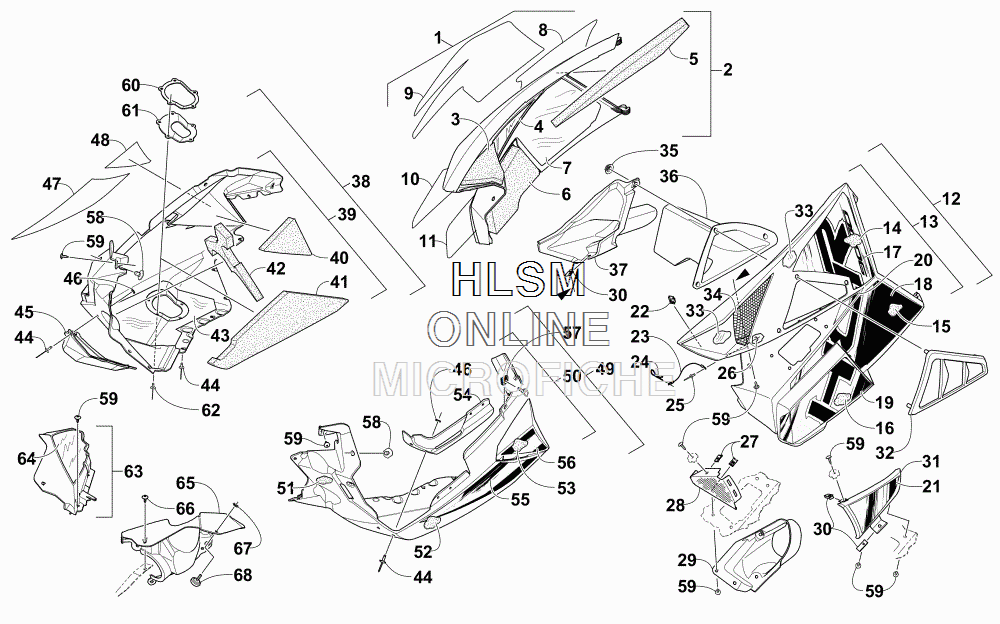

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-266 PANEL, SIDE W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-11)PANEL, SIDE W/DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 2-11)
-
23718-860 ...PANEL, SIDE W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - TEAM ARCTIC GREEN (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
81621-536 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-542 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
101621-540 ...DECAL, SIDE PANEL - CENTER - RIGHT...DECAL, SIDE PANEL - CENTER - RIGHT
-
111621-538 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
124718-267 PANEL, SIDE W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 13-20)PANEL, SIDE W/DECALS - LEFT - TEAM ARCTIC GREEN (INC. 13-20)
-
134718-579 ...PANEL, SIDE W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 14-16)...PANEL, SIDE W/O DECALS - LEFT - TEAM ARCTIC GREEN (INC. 14-16)
-
140617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
171621-537 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
181621-543 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
191621-539 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
201621-541 ...DECAL, SIDE PANEL - CENTER - LEFT...DECAL, SIDE PANEL - CENTER - LEFT
-
212621-307 DECAL, SIDE PANEL - CENTER VENT - LEFTDECAL, SIDE PANEL - CENTER VENT - LEFT
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-447 CABLECABLE
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258060-486 RIVETRIVET
-
268050-127 WASHERWASHER
-
271623-052 CLIP, U-NUTCLIP, U-NUT
-
286606-925 SCREEN, INTAKESCREEN, INTAKE
-
292602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
301623-030 CLIP, U-NUTCLIP, U-NUT
-
312602-801 DUCT, INTAKE - OUTER - TEAM ARCTIC GREENDUCT, INTAKE - OUTER - TEAM ARCTIC GREEN
-
320608-648 VENT, HEAT DUCTVENT, HEAT DUCT
-
330619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
345706-531 SCREEN, INTAKESCREEN, INTAKE
-
351623-469 NUT, STAMPEDNUT, STAMPED
-
360708-596 DUCT, HEATDUCT, HEAT
-
371702-367 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
384718-198 PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 39-48)PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 39-48)
-
393718-422 ...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 40-46)...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 40-46)
-
400617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
410617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
420617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
432612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
448061-708 ......RIVET......RIVET
-
452612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
460123-802 ......WASHER......WASHER
-
471621-544 ...DECAL, SKID PLATE - FRONT - RIGHT...DECAL, SKID PLATE - FRONT - RIGHT
-
481621-546 ...DECAL, SKID PLATE - REAR - RIGHT...DECAL, SKID PLATE - REAR - RIGHT
-
494718-199 PLATE, SKID W/DECALS - LEFT - BLACK (INC. 50-56)PLATE, SKID W/DECALS - LEFT - BLACK (INC. 50-56)
-
503718-789 ...PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 51-54)...PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 51-54)
-
510617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
520617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
530617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
546606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
551621-545 ...DECAL, SKID PLATE - FRONT - LEFT...DECAL, SKID PLATE - FRONT - LEFT
-
561621-547 ...DECAL, SKID PLATE - REAR - LEFT...DECAL, SKID PLATE - REAR - LEFT
-
572623-005 CLIP, RETAININGCLIP, RETAINING
-
586606-592 PIN, RETAININGPIN, RETAINING
-
591623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
602612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
612612-799 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
628061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
633718-302 FASCIA, FRONT RIGHT - BLACK (INC. 64)FASCIA, FRONT RIGHT - BLACK (INC. 64)
-
646606-404 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
656606-351 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
660623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
672623-001 NUT, PUSHNUT, PUSH
-
681623-999 SCREW, THUMBSCREW, THUMB
