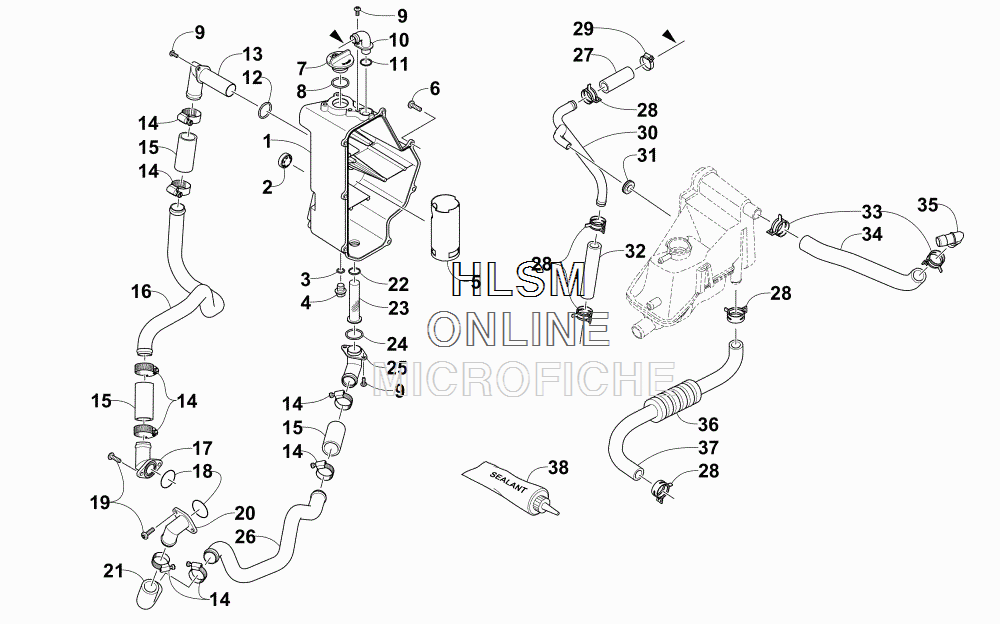

OIL TANK ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10770-963 TANK, OILTANK, OIL
-
22670-257 GLASS, SIGHTGLASS, SIGHT
-
31602-213 O-RINGO-RING
-
42602-099 PLUG, DRAINPLUG, DRAIN
-
52670-219 TUBE, OIL TANKTUBE, OIL TANK
-
61623-814 SCREW,MAG FORM-TXPH-M6X2.0X24SCREW,MAG FORM-TXPH-M6X2.0X24
-
72670-224 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
82670-135 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
91623-969 SCREW,MAG FORM-TXPH-M6X2.0X12 Z & CSCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
-
102670-218 FITTING, ELBOW NIPPLE,OIL TANK-VENTFITTING, ELBOW NIPPLE,OIL TANK-VENT
-
110670-183 O-RING, 5/8 X 13/16 ODO-RING, 5/8 X 13/16 OD
-
122670-406 O-RING,OIL TANK-0.984 ID X 0.139 THKO-RING,OIL TANK-0.984 ID X 0.139 THK
-
132670-221 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
142623-088 CLAMP,HOSE-23/35CLAMP,HOSE-23/35
-
150610-840 HOSE,25.4MM DIA X 75MM-SAE J30HOSE,25.4MM DIA X 75MM-SAE J30
-
162670-226 TUBE,OIL RETURN-FORMEDTUBE,OIL RETURN-FORMED
-
172670-170 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
180648-441 O-RING,ADJUSTER SHEAVE (2-121)O-RING,ADJUSTER SHEAVE (2-121)
-
198471-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z & (BLACK)
-
202670-169 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
210610-839 HOSE, OIL FEEDHOSE, OIL FEED
-
220673-459 O-RING,3/4ID X 1/16 (-018)O-RING,3/4ID X 1/16 (-018)
-
232670-222 SCREEN, OIL TANKSCREEN, OIL TANK
-
242670-290 O-RING,OIL TANK(2-120)O-RING,OIL TANK(2-120)
-
252670-220 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
262670-227 TUBE, OIL FEEDTUBE, OIL FEED
-
270610-869 HOSE, BREATHER - UPPERHOSE, BREATHER - UPPER
-
281623-288 CLAMP,HOSE-SPRING (12W X 25)CLAMP,HOSE-SPRING (12W X 25)
-
291623-182 CLAMP, INERCOOLER-SMALLCLAMP, INERCOOLER-SMALL
-
302670-267 TUBE BREATHER,OIL TANK-W/CHECK VALVETUBE BREATHER,OIL TANK-W/CHECK VALVE
-
311623-958 GROMMET, RUBBER - .5"ID X 1.00" OD X .09 GRGROMMET, RUBBER - .5"ID X 1.00" OD X .09 GR
-
320610-844 HOSE, BREATHER - OIL TANKHOSE, BREATHER - OIL TANK
-
331623-292 CLAMP,HOSE-SPRING (12W X 29)CLAMP,HOSE-SPRING (12W X 29)
-
340610-880 HOSE, BREATHER - OIL SEPARATOR/AIR FILTERHOSE, BREATHER - OIL SEPARATOR/AIR FILTER
-
352670-324 FITTING,ELBOW-PLASTICFITTING,ELBOW-PLASTIC
-
361619-486 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
370610-843 HOSE, BREATHER - OIL SEPARATORHOSE, BREATHER - OIL SEPARATOR
-
381048-063 LOCTITE,5699-GASKET MAKER (70ML)LOCTITE,5699-GASKET MAKER (70ML)
