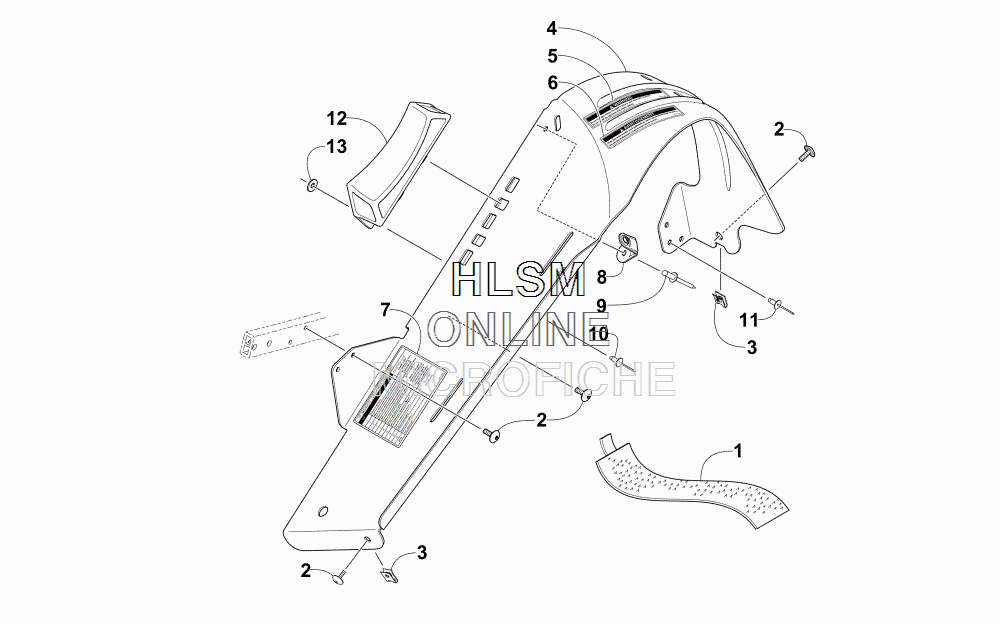

BELT GUARD ASSEMBLY для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10707-582 RETAINER, TOOLKITRETAINER, TOOLKIT
-
20623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
31623-052 CLIP, U-NUTCLIP, U-NUT
-
42707-278 GUARD, BELT (INC. 5-6)GUARD, BELT (INC. 5-6)
-
59611-690 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
69611-691 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
79611-057 DECAL, EFI DIAGNOSTIC CODESDECAL, EFI DIAGNOSTIC CODES
-
83612-037 TAB, RESONATOR MOUNTTAB, RESONATOR MOUNT
-
91623-130 RIVETRIVET
-
108060-688 RIVETRIVET
-
118060-686 RIVETRIVET
-
123612-016 PAD, MOUNTINGPAD, MOUNTING
-
130123-802 WASHERWASHER
