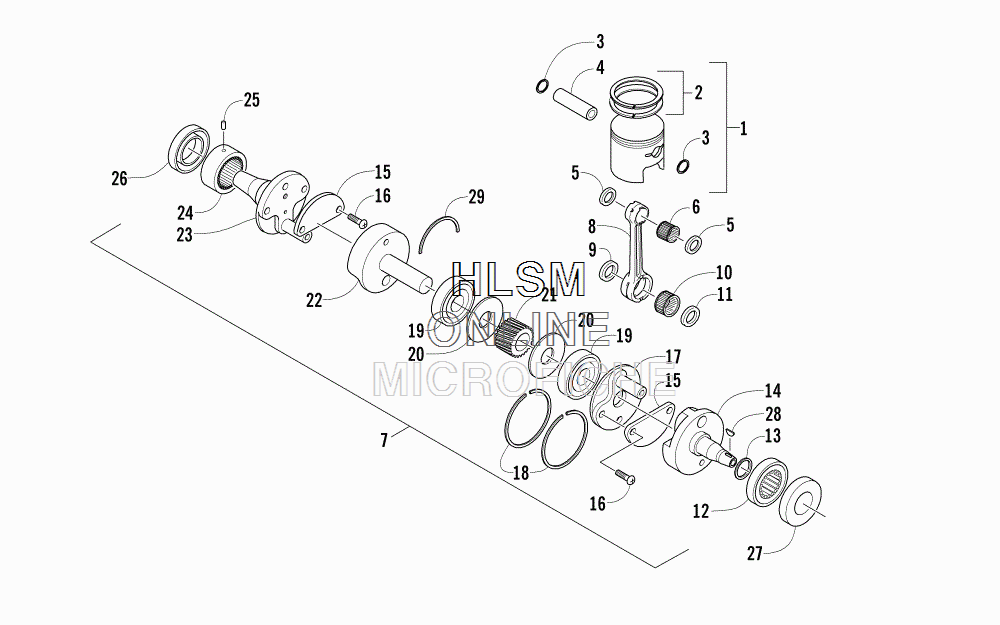

PISTON AND CRANKSHAFT для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13006-746 PISTON SET (INC. 2-3)PISTON SET (INC. 2-3)
-
23005-828 ...RING SET, PISTON...RING SET, PISTON
-
33005-304 ...CIRCLIP, PISTON...CIRCLIP, PISTON
-
43005-816 PIN, PISTONPIN, PISTON
-
53008-500 WASHERWASHER
-
63008-503 BEARINGBEARING
-
73007-861 CRANKSHAFT ASSEMBLY (INC. 8-24)CRANKSHAFT ASSEMBLY (INC. 8-24)
-
83007-614 ...CONNROD...CONNROD
-
93005-494 ...WASHER...WASHER
-
103005-505 ...BEARING...BEARING
-
113005-502 ...WASHER...WASHER
-
123005-507 ...BEARING...BEARING
-
133005-603 ...SHIM - (35MM)...SHIM - (35MM)
-
143007-045 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
153005-500 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
163007-440 ...SCREW...SCREW
-
173007-615 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
183005-508 ...RING, MIDDLE CRANK SEAL...RING, MIDDLE CRANK SEAL
-
193005-504 ...BEARING...BEARING
-
203005-597 ...RACE, MIDDLE CRANK SEAL...RACE, MIDDLE CRANK SEAL
-
213006-353 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
223006-347 ...CRANKSHAFT - MIDDLE...CRANKSHAFT - MIDDLE
-
233007-862 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
243007-439 ...BEARING-LEFT...BEARING-LEFT
-
253003-658 PIN,ALIGNMENTPIN,ALIGNMENT
-
263003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
273008-525 SEAL, OILSEAL, OIL
-
283004-540 KEY, WOODRUFFKEY, WOODRUFF
-
293003-359 C-RINGC-RING
