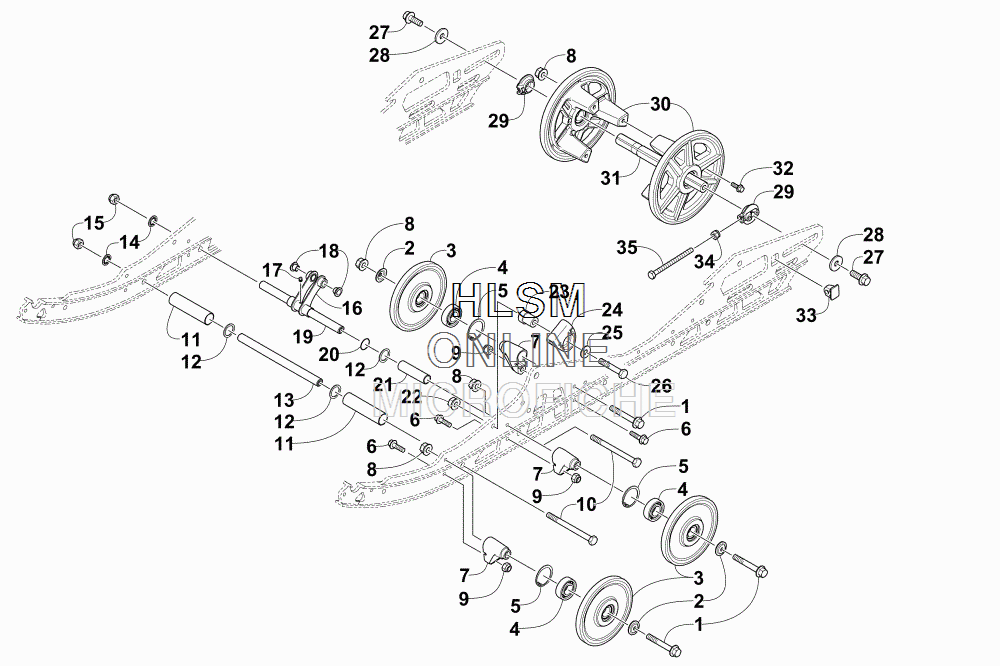

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-807 WHEEL, IDLER - (5.63 OD X 0.787 IN.ID)(BLACK) (INC. 4-5)WHEEL, IDLER - (5.63 OD X 0.787 IN.ID)(BLACK) (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT, LOCKNUT, LOCK
-
98422-602 NUT, LOCKNUT, LOCK
-
101423-064 SCREW, CAPSCREW, CAP
-
113604-083 SPACERSPACER
-
120623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & YWASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
-
133604-798 AXLEAXLE
-
141623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
158422-002 NUT, LOCKNUT, LOCK
-
162704-208 PIVOT, SHOCK (INC. 17-18)PIVOT, SHOCK (INC. 17-18)
-
179916-963 ...FITTING, GREASE...FITTING, GREASE
-
180104-386 ...BUSHING...BUSHING
-
193604-269 AXLEAXLE
-
202604-698 O-RINGO-RING
-
213604-581 SPACER - (2.698 IN.)SPACER - (2.698 IN.)
-
228427-802 NUT, LOCKNUT, LOCK
-
233604-204 BLOCK, SLIDE - (1.20 IN.)BLOCK, SLIDE - (1.20 IN.)
-
242604-515 SLIDE, SPRINGSLIDE, SPRING
-
258450-133 WASHERWASHER
-
268408-855 SCREW, CAPSCREW, CAP
-
278413-031 SCREW, CAPSCREW, CAP
-
281623-931 WASHERWASHER
-
293604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
304604-138 WHEEL, IDLERWHEEL, IDLER
-
313604-640 AXLE, REAR - (215.9MM)AXLE, REAR - (215.9MM)
-
328408-620 SCREW, CAPSCREW, CAP
-
333604-647 ADJUSTER, TRACK - (8MM) - CASTADJUSTER, TRACK - (8MM) - CAST
-
348422-802 NUT, LOCKNUT, LOCK
-
351623-682 SCREW, CAPSCREW, CAP
