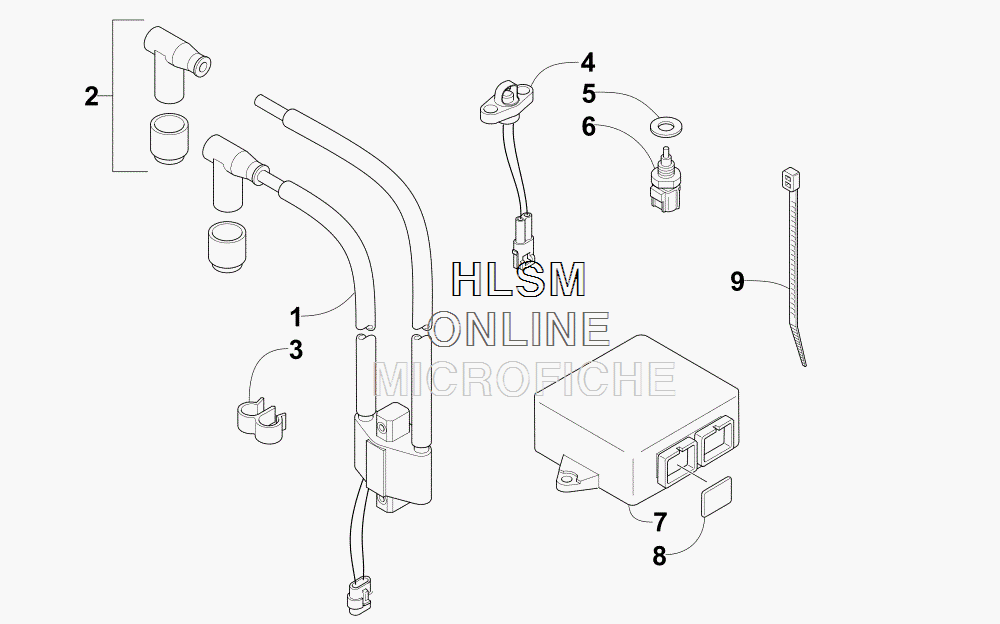

ELECTRICAL для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-451 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
33005-387 CLIPCLIP
-
43006-728 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
53005-233 WASHER, SENSORWASHER, SENSOR
-
63007-060 SENSORSENSOR
-
70730-220 ECM - (CIRCLE)ECM - (CIRCLE)
-
70730-221 ECM - (SQUARE)ECM - (SQUARE)
-
70730-222 ECM - (TRIANGLE)ECM - (TRIANGLE)
-
83005-908 CAP, RUBBERCAP, RUBBER
-
93005-237 CABLE TIECABLE TIE
