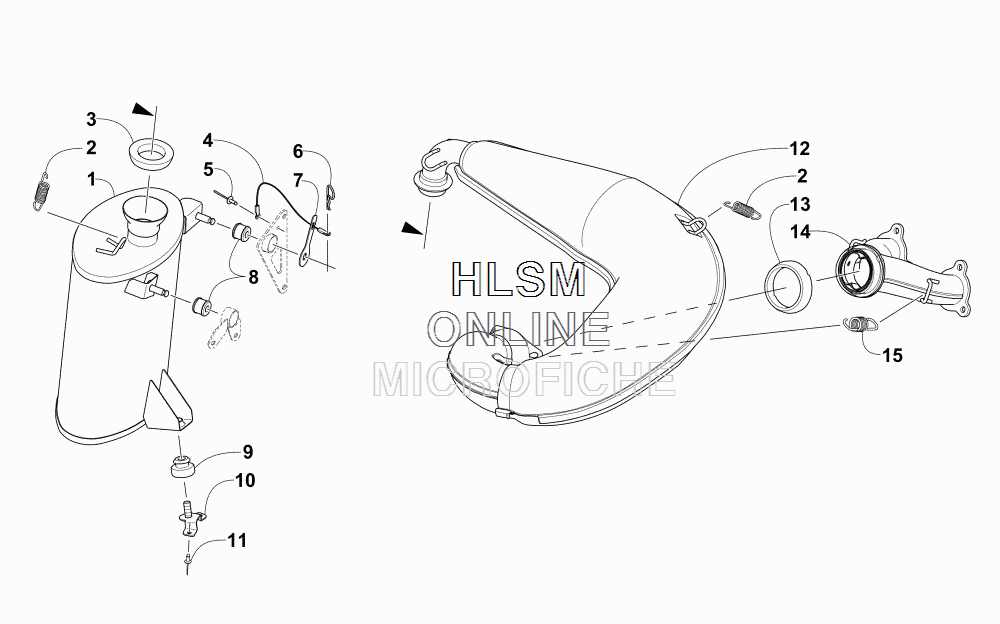

EXHAUST ASSEMBLY для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11712-953 RESONATOR ASSEMBLY - (BLACK)RESONATOR ASSEMBLY - (BLACK)
-
20612-668 SPRINGSPRING
-
31612-066 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
40607-447 CABLECABLE
-
58060-504 RIVETRIVET
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
72612-347 WASHER, RESONATORWASHER, RESONATOR
-
80412-577 BUSHINGBUSHING
-
91612-873 GROMMETGROMMET
-
101712-796 BRACKET, MOUNTING - LOWER - (BLACK)BRACKET, MOUNTING - LOWER - (BLACK)
-
111623-241 RIVETRIVET
-
121712-939 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
131612-014 GASKET, EXHAUST - HEADPIPEGASKET, EXHAUST - HEADPIPE
-
141712-934 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
152612-949 SPRING, EXHAUST - (2.70 IN.)SPRING, EXHAUST - (2.70 IN.)
