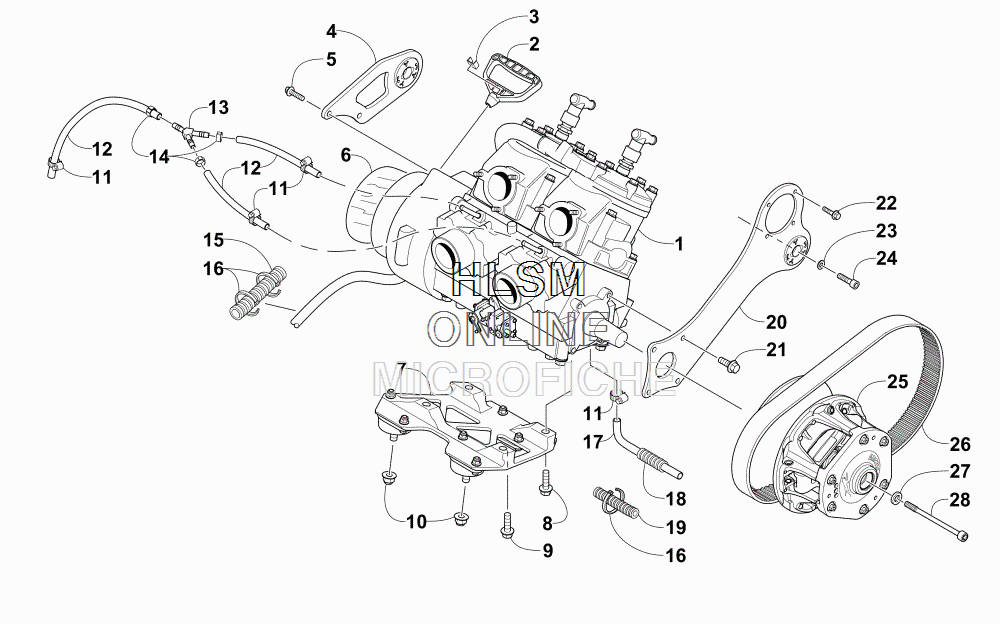

ENGINE AND RELATED PARTS для Arctic Cat ZR 4000 RR (GREEN) [S2015ZRCRRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10762-582 LONG BLOCK,ENGINE-500AALONG BLOCK,ENGINE-500AA
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-632 PLATE, MOUNTINGPLATE, MOUNTING
-
58408-821 SCREW, CAPSCREW, CAP
-
61670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
70708-633 MOUNT, ENGINEMOUNT, ENGINE
-
88413-046 SCREW, CAPSCREW, CAP
-
98409-017 SCREW, CAPSCREW, CAP
-
108427-002 NUT, LOCKNUT, LOCK
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-076 HOSE, WATER - (10 FT)HOSE, WATER - (10 FT)
-
131670-596 Y-FITTINGY-FITTING
-
140610-581 CLAMP, HOSE - (14.5MM TO 17.0MM)CLAMP, HOSE - (14.5MM TO 17.0MM)
-
150619-994 CONDUIT ((3/4 IN. ID) - 6 IN.)CONDUIT ((3/4 IN. ID) - 6 IN.)
-
160123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
170610-699 HOSE, COOLANTHOSE, COOLANT
-
180619-776 CONDUIT - (5 FT)CONDUIT - (5 FT)
-
190619-619 CONDUIT, FLEXIBLE - (4 IN.)CONDUIT, FLEXIBLE - (4 IN.)
-
200708-641 PLATE, MOUNTING - PTOPLATE, MOUNTING - PTO
-
218409-821 SCREW, CAPSCREW, CAP
-
228050-242 WASHERWASHER
-
231623-932 SCREW, CAPSCREW, CAP
-
248408-621 SCREW, CAPSCREW, CAP
-
250746-435 CLUTCH,DRIVE-UNCAL - (8.25 33MM/S)CLUTCH,DRIVE-UNCAL - (8.25 33MM/S)
-
260627-083 BELT, DRIVEBELT, DRIVE
-
271623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
281623-792 BOLT, CLUTCHBOLT, CLUTCH
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- BELT GUARD ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- • ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD AND AIR INTAKE ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RECOIL STARTER
- REED VALVE/THROTTLE BODY ASSEMBLY
- SEAT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- SUSPENSION FRONT - FRONT ARM ASSEMBLY
- SUSPENSION FRONT - FRONT ARM SHOCK ABSORBER
- SUSPENSION FRONT - SHOCK ABSORBER
- SUSPENSION REAR - REAR ARM ASSEMBLY
- SUSPENSION REAR - REAR ARM SHOCK ABSORBER
- TIE ROD ASSEMBLY
- TRACK ASSEMBLY W/ SLIDE RAIL
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP AND THERMOSTAT
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
