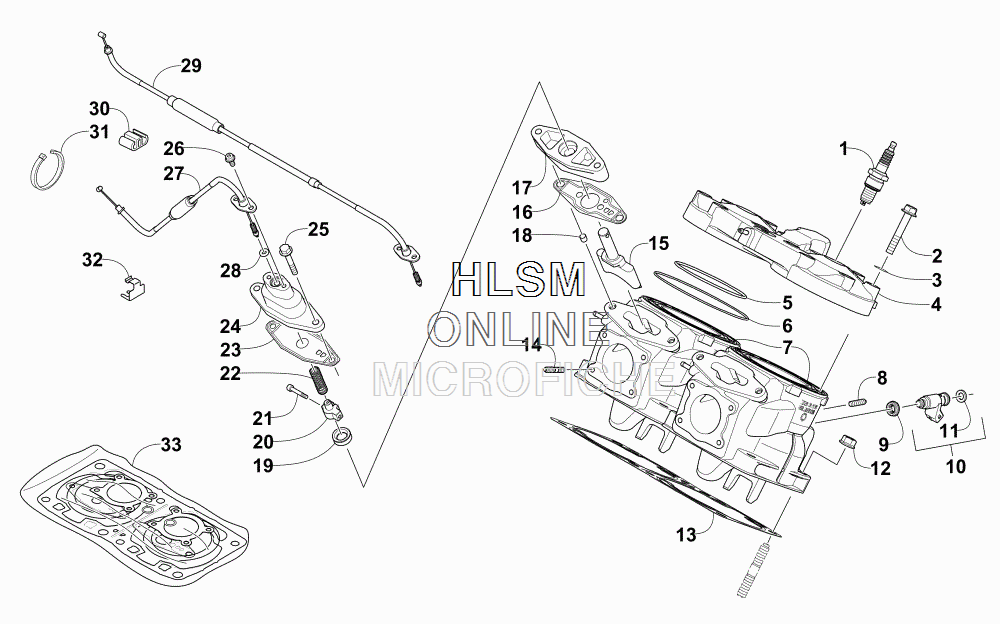

CYLINDER AND HEAD ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10217-762 PLUG, SPARK - (BPR9ES)PLUG, SPARK - (BPR9ES)
-
20923-012 SCREW,CAP-HFH M8X1.25X50 CL10.9SCREW,CAP-HFH M8X1.25X50 CL10.9
-
30930-019 O-RING, 7.59 X 2.62-NBRO-RING, 7.59 X 2.62-NBR
-
41904-001 HEAD, CYLINDERHEAD, CYLINDER
-
50930-018 O-RING, 115.5 X 1.8-NBRO-RING, 115.5 X 1.8-NBR
-
60930-020 O-RING,85.8 X 2.4-FKMO-RING,85.8 X 2.4-FKM
-
71904-005 CYLINDER, 600 DSI-ASSEMBLYCYLINDER, 600 DSI-ASSEMBLY
-
80923-046 BOLT, STUDBOLT, STUD
-
90930-032 SEAL, INJECTORSEAL, INJECTOR
-
100910-009 INJECTOR (INC. 11)INJECTOR (INC. 11)
-
110930-036 ...O-RING, INJECTOR BASE...O-RING, INJECTOR BASE
-
120923-029 NUT,HEX FLANGE-M10X1.25 CL8.8NUT,HEX FLANGE-M10X1.25 CL8.8
-
130930-049 GASKET, CYLINDERGASKET, CYLINDER
-
140923-053 STUD, M6X12-EXHAUST MANIFOLDSTUD, M6X12-EXHAUST MANIFOLD
-
150909-021 VALVE,EXHAUST-600 STEELVALVE,EXHAUST-600 STEEL
-
160930-022 GASKET, EXHAUST VALVE CASEGASKET, EXHAUST VALVE CASE
-
171909-001 PLATE, EXHAUST VALVE (INC. 18-19)PLATE, EXHAUST VALVE (INC. 18-19)
-
180829-062 ...PIN, DOWEL...PIN, DOWEL
-
190930-001 ...SEAL,OIL-EXHAUST VALVE...SEAL,OIL-EXHAUST VALVE
-
200909-009 CLAMP, EXHAUST VALVECLAMP, EXHAUST VALVE
-
210923-005 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
220909-020 SPRING, VALVE CABLESPRING, VALVE CABLE
-
230930-010 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
240909-018 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
250923-021 SCREW,CAP-HFH M6X1X40 CL8.8SCREW,CAP-HFH M6X1X40 CL8.8
-
260923-002 SCREW,CAP-TSRDWH M5X.8X12 CL 10.9SCREW,CAP-TSRDWH M5X.8X12 CL 10.9
-
270909-019 CABLE, EXHAUST VALVE - SHORTCABLE, EXHAUST VALVE - SHORT
-
280930-008 O-RING,5.23 X 2.62-NBRO-RING,5.23 X 2.62-NBR
-
290909-006 CABLE, EXHAUST VALVE - LONGCABLE, EXHAUST VALVE - LONG
-
300909-001 CLAMP, EXHAUST VALVE CABLECLAMP, EXHAUST VALVE CABLE
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
320909-002 CLIP, RETAININGCLIP, RETAINING
-
336639-613 TOP END GASKET SET- 600 C-TEC2TOP END GASKET SET- 600 C-TEC2
-
336639-614 COMPLETE OVERHAUL GASKET SET- 600 C-TEC2COMPLETE OVERHAUL GASKET SET- 600 C-TEC2
