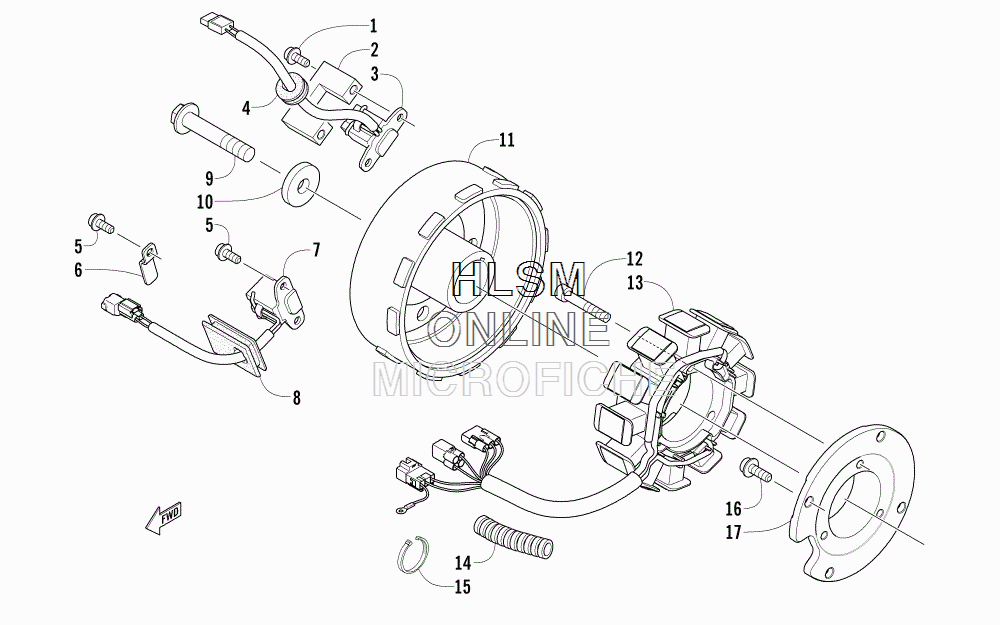

MAGNETO для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10923-054 SCREW,CAP-TSRDWH M5X.8X40 CL 10.9SCREW,CAP-TSRDWH M5X.8X40 CL 10.9
-
20902-038 BRACKET, RETAININGBRACKET, RETAINING
-
30902-005 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
40902-022 GROMMETGROMMET
-
50923-002 SCREW,CAP-TSRDWH M5X.8X12 CL 10.9SCREW,CAP-TSRDWH M5X.8X12 CL 10.9
-
60902-020 BRACKET, RETAININGBRACKET, RETAINING
-
70902-006 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
80902-021 GROMMET, STATOR LEAD WIREGROMMET, STATOR LEAD WIRE
-
90923-033 SCREW,CAP-HFH M10X1.25X54 CL10.9SCREW,CAP-HFH M10X1.25X54 CL10.9
-
100923-032 WASHER,FLAT-M10X28WASHER,FLAT-M10X28
-
110902-026 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
120923-027 SCREW, CAP-TSH M6X1X35 CL10.9SCREW, CAP-TSH M6X1X35 CL10.9
-
130902-017 STATORSTATOR
-
141619-131 CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)
-
150123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
160923-024 SCREW,CAP-TSRDWH M6X1X16 CL 10.9SCREW,CAP-TSRDWH M6X1X16 CL 10.9
-
170902-014 PLATE, BASE - STATORPLATE, BASE - STATOR
