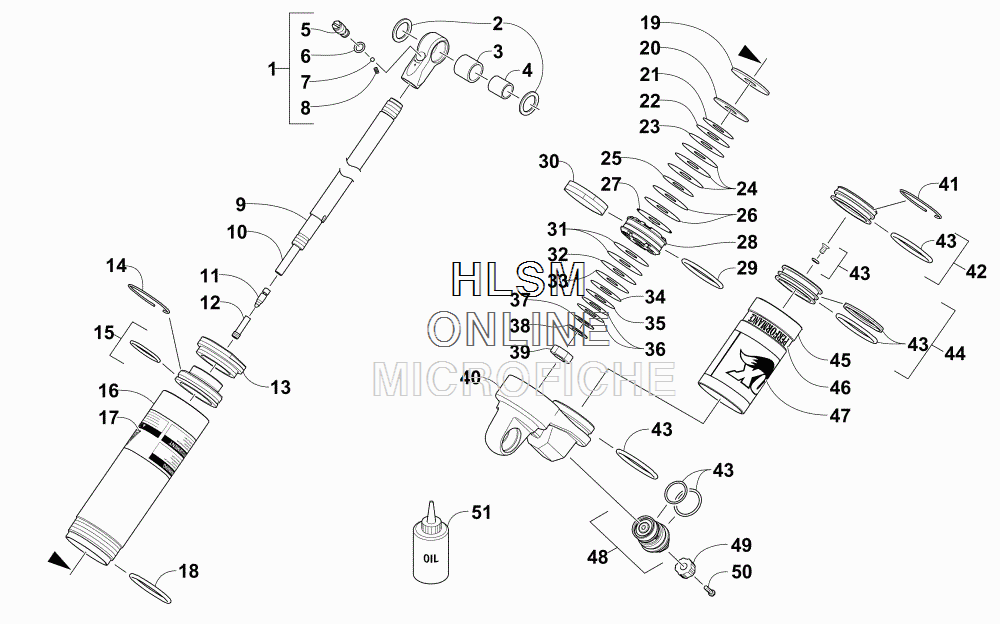

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска

№

Артикул

Название
-

2704-636 SHOCK,REAR ARM-CROSS COUNTRY

SHOCK,REAR ARM-CROSS COUNTRY

130 ₽
1

4604-024 EYELET, SHOCK - ASSEMBLY (INC. 2-8)

EYELET, SHOCK - ASSEMBLY (INC. 2-8)

20 380 ₽
2

4604-077 ...EYELET PARTS,SPACER .621X.050 (BLACK)

...EYELET PARTS,SPACER .621X.050 (BLACK)

8 940 ₽
3

3603-399 ...BEARING

...BEARING

3 740 ₽
4

4604-076 ...EYELET PARTS,SLEEVE 0.403X0.621X0.950

...EYELET PARTS,SLEEVE 0.403X0.621X0.950

2 910 ₽
5

4604-022 ...KNOB, DAMPING - EYELET

...KNOB, DAMPING - EYELET

4 150 ₽
6

1604-318 ...O-RING-END CAP FITTING (FOX ONLY)

...O-RING-END CAP FITTING (FOX ONLY)

1 870 ₽
7

1604-315 ...BALL, BLEED

...BALL, BLEED

630 ₽
8

3603-380 ...SPRING,.320 TLG X .115 OD X 52 LB/IN

...SPRING,.320 TLG X .115 OD X 52 LB/IN

1 870 ₽
9

4604-025 SHAFT, SHOCK

SHAFT, SHOCK

24 540 ₽
10

4604-023 ROD, DAMPING ADJUSTER - ASSEMBLY

ROD, DAMPING ADJUSTER - ASSEMBLY

2 700 ₽
11

2604-953 NEEDLE, DAMPING W/O-RING

NEEDLE, DAMPING W/O-RING

6 650 ₽
12

4604-029 VALVE, CHECK - ASSEMBLY

VALVE, CHECK - ASSEMBLY

13 310 ₽
13

3603-450 END CAP, SHOCK

END CAP, SHOCK

10 810 ₽
14

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
15

3603-451 BEARING ASSEMBLY

BEARING ASSEMBLY

18 510 ₽
16

4604-021 BODY, SHOCK

BODY, SHOCK

16 010 ₽
17

3603-418 DECAL BAND [4.4 X 1.5] WARNING SYMBOLS

DECAL BAND [4.4 X 1.5] WARNING SYMBOLS

1 870 ₽
18

4604-027 KIT,REBUILD-SHOCK SEAL/BEARING

KIT,REBUILD-SHOCK SEAL/BEARING

21 000 ₽
19

4604-026 SPACER,SHAFT-.630 X1.570X.100

SPACER,SHAFT-.630 X1.570X.100

1 870 ₽
20

2604-449 WASHER, TOPOUT-1.570OD X .500ID X .128TH

WASHER, TOPOUT-1.570OD X .500ID X .128TH

2 070 ₽
21

2604-485 VALVE, 1.100 X 0.008 IN.

VALVE, 1.100 X 0.008 IN.

1 020 ₽
22

2604-492 VALVE, 1.350 X 0.010 IN.

VALVE, 1.350 X 0.010 IN.

1 870 ₽
23

2604-497 VALVE, 1.425 X 0.010 IN.

VALVE, 1.425 X 0.010 IN.

1 870 ₽
24

2604-503 VALVE, 1.600 X 0.012 IN.

VALVE, 1.600 X 0.012 IN.

1 870 ₽
25

2604-484 VALVE, 1.100 X 0.006 IN.

VALVE, 1.100 X 0.006 IN.

1 020 ₽
26

2604-502 VALVE, 1.600 X 0.010 IN.

VALVE, 1.600 X 0.010 IN.

1 870 ₽
27

3603-481 VALVE, BLEED - 1.600 X 0.004 IN.

VALVE, BLEED - 1.600 X 0.004 IN.

1 240 ₽
28

0403-394 PISTON, HIGH-FLOW

PISTON, HIGH-FLOW

10 190 ₽
29

3604-725 O-RING - .070" CS X 1.489 ID

O-RING - .070" CS X 1.489 ID

230 ₽
30

3603-413 STRAP, PISTON

STRAP, PISTON

4 360 ₽
31

2604-499 VALVE, 1.425 X 0.015 IN.

VALVE, 1.425 X 0.015 IN.

900 ₽
32

2604-498 VALVE, 1.425 X 0.012 IN.

VALVE, 1.425 X 0.012 IN.

1 870 ₽
33

2604-493 VALVE, 1.350 X 0.012 IN.

VALVE, 1.350 X 0.012 IN.

1 870 ₽
34

2604-487 VALVE, 1.100 X 0.012 IN.

VALVE, 1.100 X 0.012 IN.

1 020 ₽
35

2604-481 VALVE, 0.950 X 0.012 IN.

VALVE, 0.950 X 0.012 IN.

1 020 ₽
36

2604-477 VALVE, SHOCK 0.800 X 0.020 IN.

VALVE, SHOCK 0.800 X 0.020 IN.

1 020 ₽
37

4604-129 WASHER, TOP OUT

WASHER, TOP OUT

1 870 ₽
38

3604-184 WASHER, BACKUP

WASHER, BACKUP

2 070 ₽
39

2604-448 NUT,PISTON

NUT,PISTON

2 700 ₽
40

3603-448 END CAP, BODY/RESERVOIR

END CAP, BODY/RESERVOIR

29 530 ₽
41

3603-379 RING,RETAINING-SPIRAL-1.117 OD

RING,RETAINING-SPIRAL-1.117 OD

400 ₽
42

3603-392 END CAP, RESERVOIR

END CAP, RESERVOIR

5 190 ₽
43

4604-017 KIT, REBUILD - RESERVOIR

KIT, REBUILD - RESERVOIR

13 930 ₽
44

3604-422 BODY, SHOCK

BODY, SHOCK

25 370 ₽
45

3603-388 RESERVOIR

RESERVOIR

16 430 ₽
46

3603-365 DECAL, "PERFORMANCE SERIES"

DECAL, "PERFORMANCE SERIES"

2 700 ₽
47

3603-378 DECAL,RESERVOIR-PERFORMANCE SERIES

DECAL,RESERVOIR-PERFORMANCE SERIES

2 700 ₽
48

3603-466 CARTRIDGE, DAMPING ADJUSTER

CARTRIDGE, DAMPING ADJUSTER

15 180 ₽
49

3603-385 KNOB, DAMPING ADJUSTER - LOW SPEED

KNOB, DAMPING ADJUSTER - LOW SPEED

610 ₽
50

3603-377 SCREW,#4-40 X 1/4 SS

SCREW,#4-40 X 1/4 SS

1 870 ₽
51

5639-530 SEMI-SYN SHOCK OIL-1 QUART

SEMI-SYN SHOCK OIL-1 QUART

3 950 ₽
