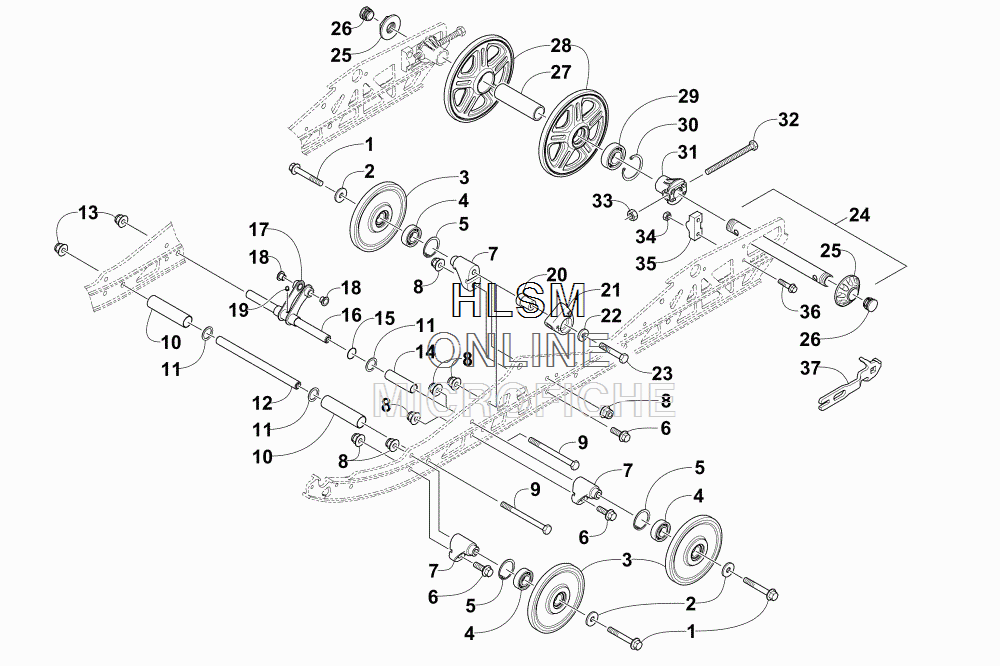

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
18408-880 SCREW,CAP-HFH M8X1.25X80 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X80 CL8.8 Z & Y
-
28450-133 WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & YWASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & Y
-
33604-807 WHEEL, IDLER - (BLACK) (INC. 4-5)WHEEL, IDLER - (BLACK) (INC. 4-5)
-
43604-033 ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
-
50623-946 ...RING,INTERNAL RETAINING-#165...RING,INTERNAL RETAINING-#165
-
68408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
-
73604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
91423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
-
103604-083 SPACER,FRONT ARM SHOCKSPACER,FRONT ARM SHOCK
-
110623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & YWASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
-
123604-798 AXLE,STEEL-22.2 X 222.2AXLE,STEEL-22.2 X 222.2
-
138427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
143604-581 SPACER,ALUMINUM-2.698"SPACER,ALUMINUM-2.698"
-
152604-698 O-RING,5/8ID X 7/8ODO-RING,5/8ID X 7/8OD
-
163604-269 AXLE,ALUM-22.2 X 222.2AXLE,ALUM-22.2 X 222.2
-
172704-208 PIVOT, SHOCK (INC. 18-19)PIVOT, SHOCK (INC. 18-19)
-
180104-386 ...BUSHING,REAR ARM...BUSHING,REAR ARM
-
199916-963 ...FITTING, GREASE...FITTING, GREASE
-
203604-204 BLOCK, SLIDEBLOCK, SLIDE
-
212604-515 SLIDE, SPRINGSLIDE, SPRING
-
228450-133 WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & YWASHER,FLAT-M8-9.12 X 25.40 X 2.30Z & Y
-
238408-850 SCREW,CAP-HFH M8X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X50 CL8.8 Z & Y
-
241704-891 AXLE,REAR-W/NUT-LH SIDE ASSY (INC. 25)AXLE,REAR-W/NUT-LH SIDE ASSY (INC. 25)
-
252604-914 ...NUT, AXLE...NUT, AXLE
-
263606-799 CLOSURE, TUBE -3/4OD X .584-.700ID (BLACK)CLOSURE, TUBE -3/4OD X .584-.700ID (BLACK)
-
272604-115 SPACER, ALUM- 1.00 ID X 1.25 ODSPACER, ALUM- 1.00 ID X 1.25 OD
-
283604-185 WHEEL,IDLER-7.125 (INC. 30-31)WHEEL,IDLER-7.125 (INC. 30-31)
-
290107-598 BEARING,BALL-25MMBEARING,BALL-25MM
-
301623-622 ...RING,RETAINING-EXTERNAL-#206...RING,RETAINING-EXTERNAL-#206
-
314604-087 ...BUSHING,ADJUSTER...BUSHING,ADJUSTER
-
320124-310 HHCS 3/8-16X4.0 THREADED GR5 Z & YHHCS 3/8-16X4.0 THREADED GR5 Z & Y
-
338041-486 NUT, HEX - THIN LOCKNUT, HEX - THIN LOCK
-
348040-366 NUT,HEX LOCK-NYL 1/4-20 Z & YNUT,HEX LOCK-NYL 1/4-20 Z & Y
-
351704-379 ADJUSTER, TRACKADJUSTER, TRACK
-
361623-539 SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z & YSCREW,CAP-HFH 1/4-20 X 1 GR 5 Z & Y
-
370644-558 TOOL,TRACK TENSIONTOOL,TRACK TENSION
