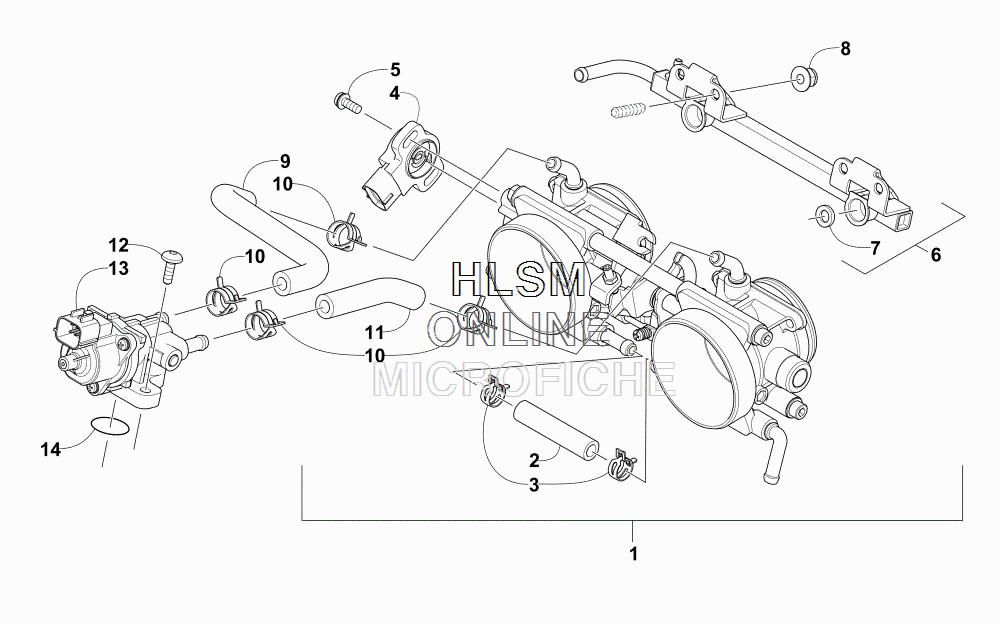

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10910-001 BODY, THROTTLE - ASSEMBLY (INC. 2-5)BODY, THROTTLE - ASSEMBLY (INC. 2-5)
-
26506-424 ...HOSE...HOSE
-
36506-338 ...CLAMP, HOSE...CLAMP, HOSE
-
46506-425 ...SENSOR, THROTTLE - ASSEMBLY...SENSOR, THROTTLE - ASSEMBLY
-
56506-075 ...SCREW, MACHINE...SCREW, MACHINE
-
60910-007 RAIL, FUEL (INC. 7)RAIL, FUEL (INC. 7)
-
70930-036 ...O-RING, INJECTOR BASE...O-RING, INJECTOR BASE
-
88427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
92670-250 HOSE, ISC TO MAG T/BHOSE, ISC TO MAG T/B
-
101623-278 CLAMP,HOSE-SPRING (12W X 15)CLAMP,HOSE-SPRING (12W X 15)
-
112670-251 HOSE, ISC TO PTO T/BHOSE, ISC TO PTO T/B
-
128468-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 (BLACK)SCREW,MACH-TSPNH M6X1.0X16 CL8.8 (BLACK)
-
130910-004 CONTROLLER, IDLE SPEEDCONTROLLER, IDLE SPEED
-
142623-090 O-RING 13.94MM X 2.62MM CSO-RING 13.94MM X 2.62MM CS
