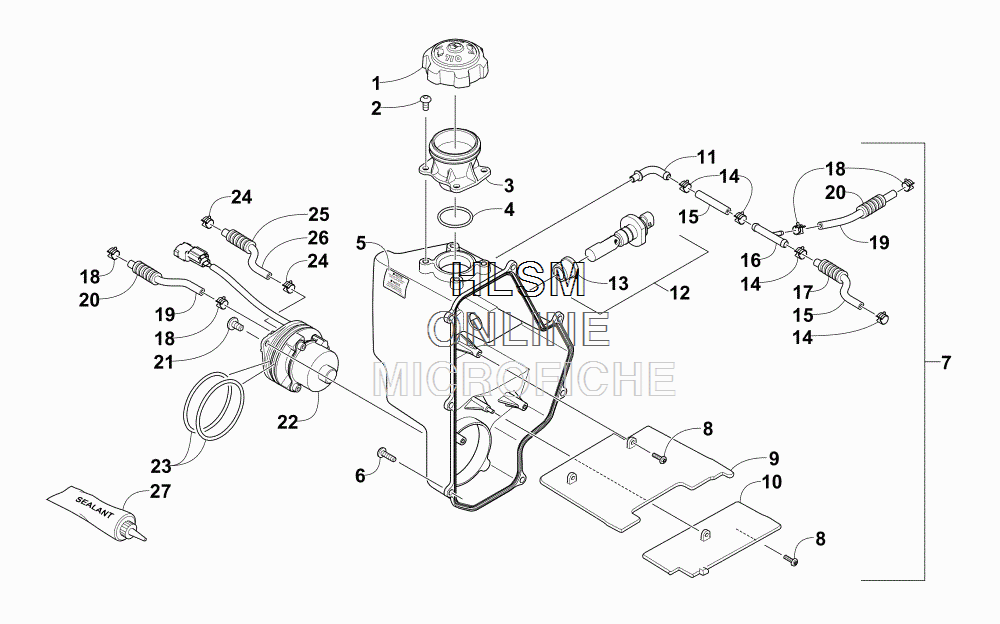

OIL TANK ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) [S2015ACDCCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12670-447 CAP, OIL TANKCAP, OIL TANK
-
21623-969 SCREW,MAG FORM-TXPH-M6X2.0X12 Z & CSCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
-
32670-329 NECK,OIL TANKNECK,OIL TANK
-
41623-972 O-RING,33MM X 3MM-N70O-RING,33MM X 3MM-N70
-
50621-786 DECAL, OIL TANKDECAL, OIL TANK
-
61623-814 SCREW,MAG FORM-TXPH-M6X2.0X24SCREW,MAG FORM-TXPH-M6X2.0X24
-
71770-062 TANK, OIL (INC. 8-11)TANK, OIL (INC. 8-11)
-
82623-007 ...SCREW,MAG FORM-TSPH-M4X1.5X15...SCREW,MAG FORM-TSPH-M4X1.5X15
-
92670-354 ...PLATE, BAFFLE - UPPER...PLATE, BAFFLE - UPPER
-
102670-359 ...PLATE, BAFFLE - LOWER...PLATE, BAFFLE - LOWER
-
110913-021 ...FITTING, ELBOW...FITTING, ELBOW
-
120609-915 SWITCH, LEVEL-OIL (INC. 13)SWITCH, LEVEL-OIL (INC. 13)
-
130609-924 ...GROMMET, SWITCH-OIL LEVEL...GROMMET, SWITCH-OIL LEVEL
-
141623-351 CLAMP, HOSE-12.32MM IDCLAMP, HOSE-12.32MM ID
-
150610-968 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
162670-362 T-FITTINGT-FITTING
-
171619-359 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
182623-013 CLAMP,HOSE-SPRING-CTL 5CLAMP,HOSE-SPRING-CTL 5
-
190610-967 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
205706-536 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
218468-613 SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343
-
220912-003 PUMP, OIL (INC. 23)PUMP, OIL (INC. 23)
-
230930-046 ...O-RING,2 5/8 ID X 2 7/8 OD X 1/8"THK...O-RING,2 5/8 ID X 2 7/8 OD X 1/8"THK
-
240923-050 CLAMP, SPRING-6.5MMCLAMP, SPRING-6.5MM
-
251619-356 CONDUIT, HIGH TEMPCONDUIT, HIGH TEMP
-
260610-966 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
271048-063 LOCTITE,5699-GASKET MAKER(70ML)LOCTITE,5699-GASKET MAKER(70ML)
