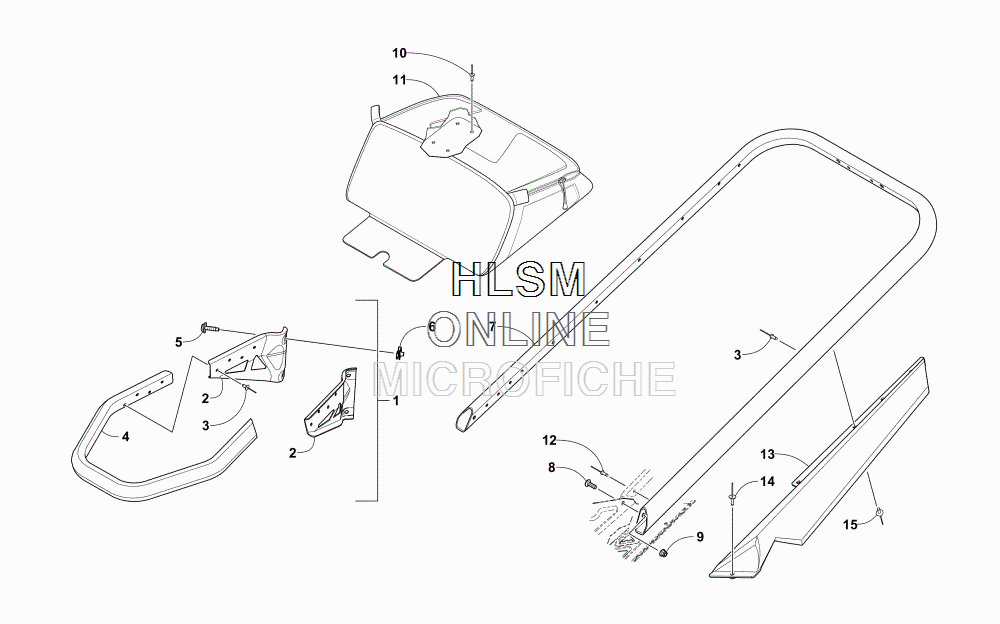

BUMPERS AND STORAGE для Arctic Cat ZR 8000 RR ES 137 GREEN EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
12707-080 BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)
-
21707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
21707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
38060-706 ...RIVET...RIVET
-
42707-179 ...BUMPER, FRONT - GREEN...BUMPER, FRONT - GREEN
-
50423-609 ...SCREW, MACHINE...SCREW, MACHINE
-
60423-577 CLIP, U-NUTCLIP, U-NUT
-
72707-810 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
88476-620 SCREW, MACHINESCREW, MACHINE
-
98427-602 NUT, LOCKNUT, LOCK
-
108061-628 RIVETRIVET
-
117606-419 SADDLEBAG, REARSADDLEBAG, REAR
-
121623-241 RIVETRIVET
-
136606-870 FLARE, TUNNEL - RIGHT (STANDARD ON LTD AND EL TIGRE)FLARE, TUNNEL - RIGHT (STANDARD ON LTD AND EL TIGRE)
-
136606-871 FLARE, TUNNEL - LEFT (STANDARD ON LTD AND EL TIGRE)FLARE, TUNNEL - LEFT (STANDARD ON LTD AND EL TIGRE)
-
148060-710 RIVETRIVET
-
158061-706 RIVETRIVET
