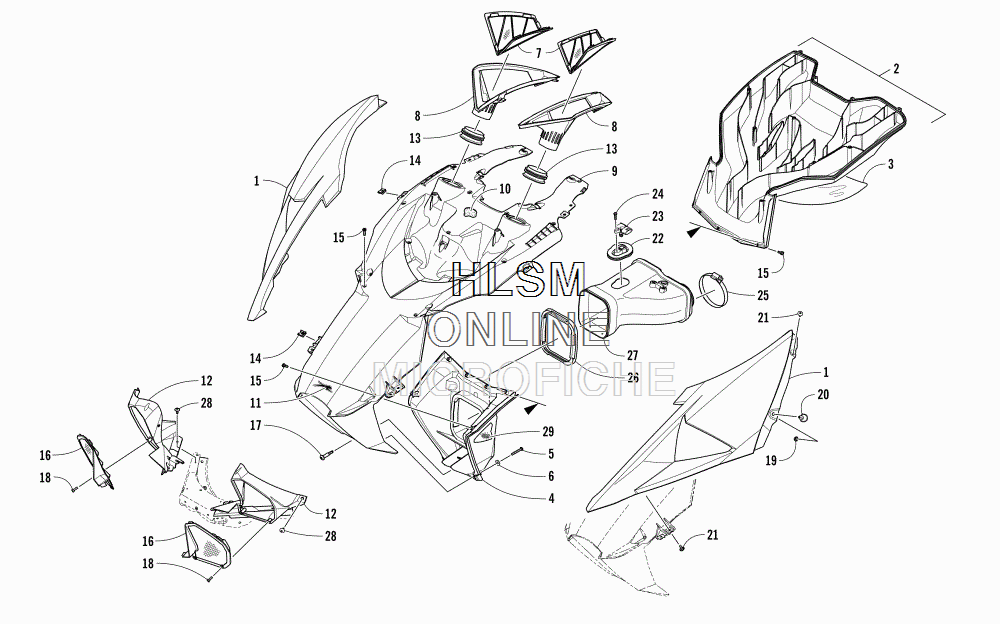

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 8000 RR ES 137 GREEN EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
15718-546 HOOD W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)HOOD W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
-
15718-547 HOOD W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)HOOD W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
-
17606-138 HOOD W/O DECALS - RIGHT - BLACKHOOD W/O DECALS - RIGHT - BLACK
-
17606-139 HOOD W/O DECALS - LEFT - BLACKHOOD W/O DECALS - LEFT - BLACK
-
25718-329 PLENUM, AIR INTAKE - LOWER REAR - W/FOIL (INC. 3)PLENUM, AIR INTAKE - LOWER REAR - W/FOIL (INC. 3)
-
37606-307 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
47606-050 PLENUM, AIR INTAKE - LOWER FRONTPLENUM, AIR INTAKE - LOWER FRONT
-
51623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
68050-217 WASHERWASHER
-
70608-758 SCREEN, INTAKE DUCT - RIGHTSCREEN, INTAKE DUCT - RIGHT
-
70608-759 SCREEN, INTAKE DUCT - LEFTSCREEN, INTAKE DUCT - LEFT
-
80608-748 DUCT, INTAKE - RIGHTDUCT, INTAKE - RIGHT
-
80608-749 DUCT, INTAKE - LEFTDUCT, INTAKE - LEFT
-
95718-328 PLENUM, INTAKE - UPPER (INC. 10)PLENUM, INTAKE - UPPER (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
114411-479 DECAL, AIRCATDECAL, AIRCAT
-
127606-258 VENT - RIGHTVENT - RIGHT
-
127606-259 VENT - LEFTVENT - LEFT
-
136606-386 SEALSEAL
-
141623-939 NUT, UNUT, U
-
151623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
167606-056 BEZEL, VENT - RIGHTBEZEL, VENT - RIGHT
-
167606-057 BEZEL, VENT - LEFTBEZEL, VENT - LEFT
-
172623-058 SCREW, SHOULDERSCREW, SHOULDER
-
182623-211 SCREWSCREW
-
192623-004 NUT, PUSHNUT, PUSH
-
202623-003 PIN, RETAININGPIN, RETAINING
-
212623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
222670-444 BOOTBOOT
-
230824-052 SENSOR, T-MAPSENSOR, T-MAP
-
242623-016 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250423-018 CLAMP, HOSECLAMP, HOSE
-
260617-624 ADAPTER, BOOTADAPTER, BOOT
-
271770-056 BOOT, INTAKEBOOT, INTAKE
-
282623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290621-989 DECAL, REFLECTOR - AMBERDECAL, REFLECTOR - AMBER
