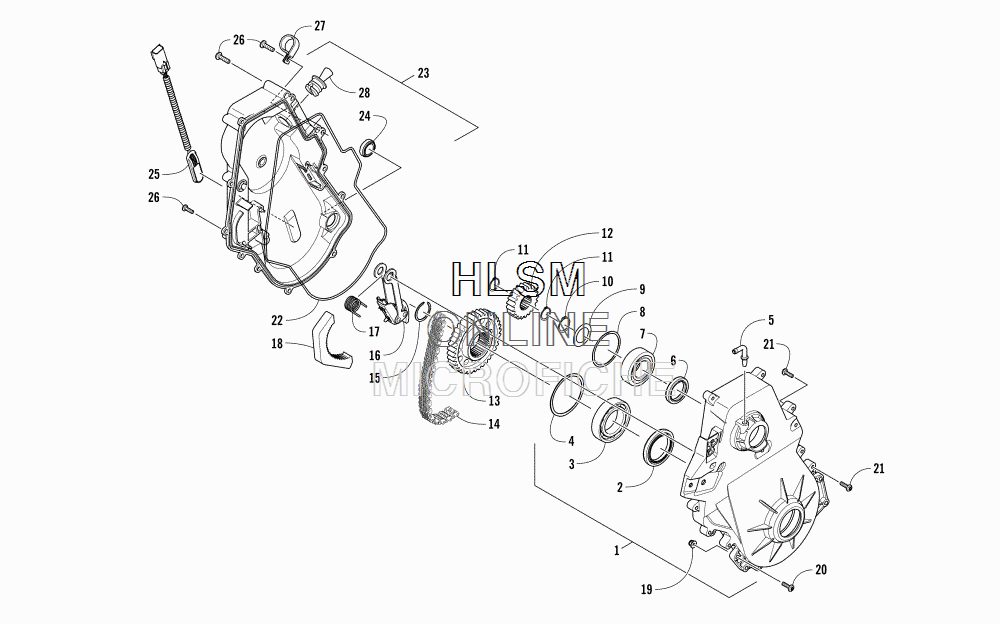

CHAIN CASE ASSEMBLY для Arctic Cat ZR 8000 RR ES 137 GREEN EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
11702-451 CHAIN CASE ASSEMBLY (INC. 2-8)CHAIN CASE ASSEMBLY (INC. 2-8)
-
22602-172 ...SEAL...SEAL
-
32602-281 ...BEARING...BEARING
-
42602-280 ...RING, RETAINING...RING, RETAINING
-
52602-641 ...FITTING, ELBOW...FITTING, ELBOW
-
62602-204 ...SEAL...SEAL
-
72602-734 ...BEARING...BEARING
-
82602-236 ...RING, RETAINING...RING, RETAINING
-
93602-028 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
101423-175 RING, RETAININGRING, RETAINING
-
111623-690 RING, RETAININGRING, RETAINING
-
122602-825 SPROCKET - 21T (13 WIDE)SPROCKET - 21T (13 WIDE)
-
132602-745 SPROCKET - 41T (13 WIDE)SPROCKET - 41T (13 WIDE)
-
142602-743 CHAIN - 86P (13 WIDE)CHAIN - 86P (13 WIDE)
-
152602-629 RING, RETAININGRING, RETAINING
-
161702-397 ARM, TENSIONER - ASSEMBLYARM, TENSIONER - ASSEMBLY
-
172602-336 SPRINGSPRING
-
182602-230 PLATE, RATCHETPLATE, RATCHET
-
198427-602 NUT, LOCKNUT, LOCK
-
208476-630 SCREW, MACHINESCREW, MACHINE
-
211623-814 SCREW, MACHINESCREW, MACHINE
-
223602-079 SEAL, CHAIN CASESEAL, CHAIN CASE
-
231702-497 COVER, CHAIN CASE (INC. 22 AND 24-25)COVER, CHAIN CASE (INC. 22 AND 24-25)
-
242602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
250730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
268468-625 SCREW, MACHINESCREW, MACHINE
-
271623-722 CLAMPCLAMP
-
282602-440 PLUG, FILLPLUG, FILL
