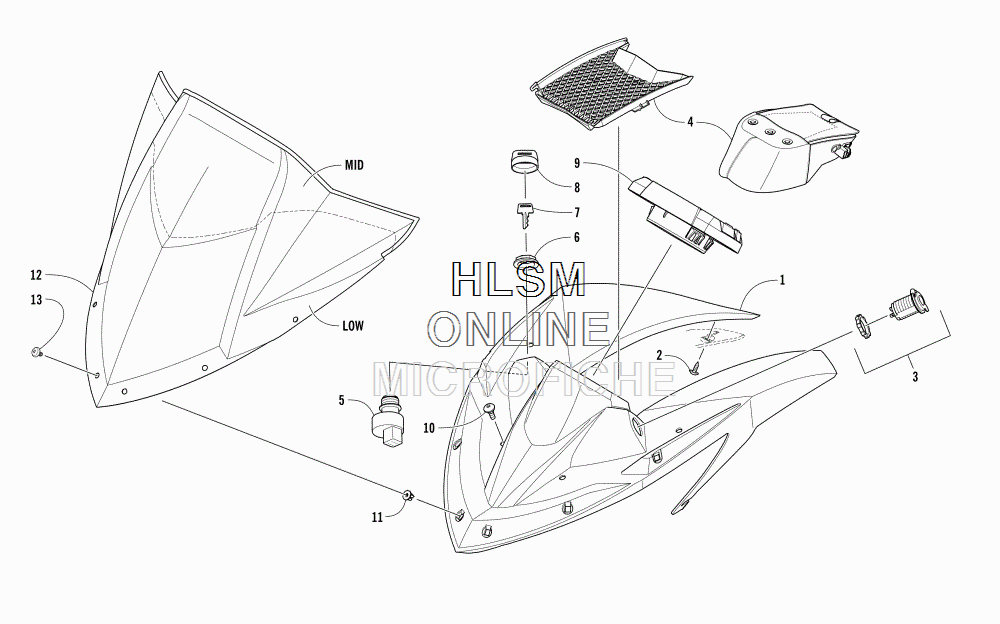

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 8000 RR ES 137 GREEN EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
16606-628 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
22623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
47606-266 VENT, POD (STANDARD ON SNO PRO)VENT, POD (STANDARD ON SNO PRO)
-
47606-543 BAG, GOGGLE (STANDARD ON LTD AND EL TIGRE)BAG, GOGGLE (STANDARD ON LTD AND EL TIGRE)
-
50609-910 SWITCH, IGNITION (INC. 6-8)SWITCH, IGNITION (INC. 6-8)
-
60430-050 ...NUT, RETAINING...NUT, RETAINING
-
70430-042 ...KEY, IGNITION - Y SERIES (LEFT BLANK)...KEY, IGNITION - Y SERIES (LEFT BLANK)
-
70430-043 ...KEY, IGNITION - Z SERIES (RIGHT BLANK)...KEY, IGNITION - Z SERIES (RIGHT BLANK)
-
80430-054 ...COVER, KEY...COVER, KEY
-
90720-031 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
102623-042 SCREW, SHOULDERSCREW, SHOULDER
-
111623-025 INSERTINSERT
-
127606-549 WINDSHIELD - LOW - GREENWINDSHIELD - LOW - GREEN
-
132623-146 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
