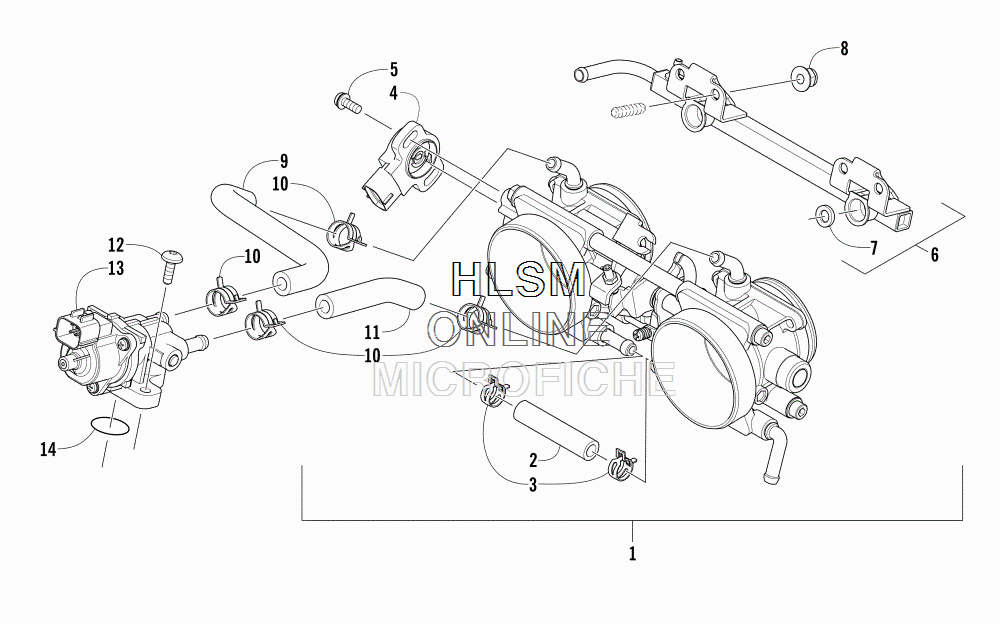

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 8000 RR ES 137 GREEN EARLY BUILD - 2018 года выпуска
-
№АртикулНазвание
-
10910-006 BODY, THROTTLE - ASSEMBLY (INC. 2-5)BODY, THROTTLE - ASSEMBLY (INC. 2-5)
-
26506-424 ...HOSE...HOSE
-
36506-338 ...CLAMP, HOSE...CLAMP, HOSE
-
46506-425 ...SENSOR, THROTTLE - ASSEMBLY...SENSOR, THROTTLE - ASSEMBLY
-
56506-075 ...SCREW, MACHINE...SCREW, MACHINE
-
60910-024 RAIL, FUEL (INC. 7)RAIL, FUEL (INC. 7)
-
70930-036 ...O-RING...O-RING
-
88427-602 NUT, LOCKNUT, LOCK
-
92670-250 HOSEHOSE
-
101623-278 CLAMP, HOSECLAMP, HOSE
-
112670-251 HOSEHOSE
-
128468-616 SCREW, MACHINESCREW, MACHINE
-
130910-004 CONTROLLER, IDLE SPEEDCONTROLLER, IDLE SPEED
-
142623-090 O-RINGO-RING
