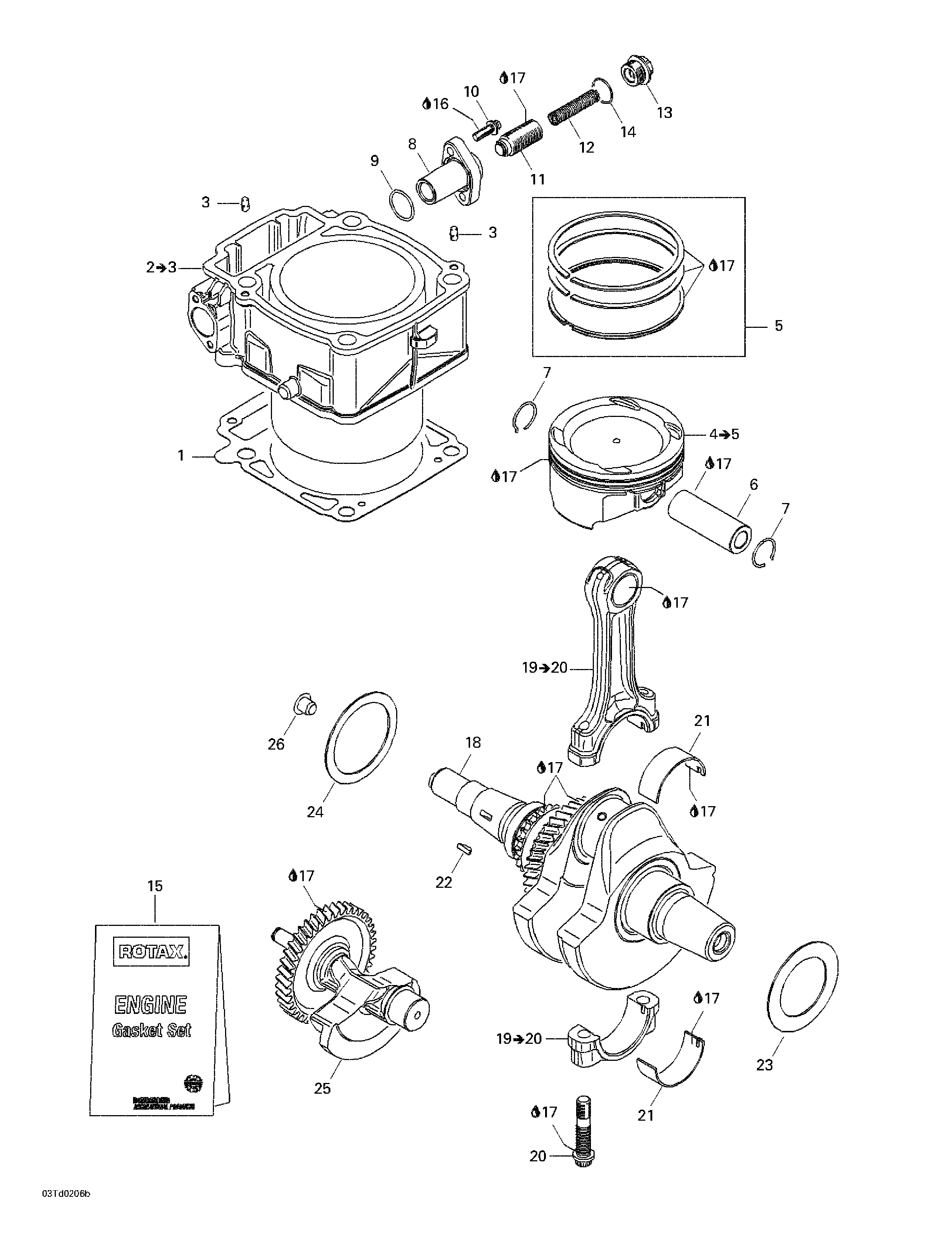

01- Crankshaft And Cylinder для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1711630080 GasketGasket
-
2711923947 Cylindre Ass'y. Includes 2 - 3.Cylindre Ass'y. Includes 2 - 3.
-
3420929650 Drive Pin 5 x 10Drive Pin 5 x 10
-
4711296565 Piston Ass'y. Includes 4 - 5.Piston Ass'y. Includes 4 - 5.
-
5711888864 Piston Ring SetPiston Ring Set
-
6711216250 Piston PinPiston Pin
-
7711845580 CirclipCirclip
-
8711236510 Tensioner HousingTensioner Housing
-
9420430370 O-RingO-Ring
-
10711641233 Torx Flanged Screw M6 x 25Torx Flanged Screw M6 x 25
-
11711236520 Tensioner PlungerTensioner Plunger
-
12711238120 SpringSpring
-
13711641150 Screw PlugScrew Plug
-
14290250890 O-RingO-Ring
-
15711684120 Engine Gasket SetEngine Gasket Set
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18711296861 Crankshaft Ass'yCrankshaft Ass'y
-
19711917545 Connecting Rod. Includes 19 - 20.Connecting Rod. Includes 19 - 20.
-
20711640990 Connecting ScrewConnecting Screw
-
21711933520 Plain BearingPlain Bearing
-
22711246570 Woodruff KeyWoodruff Key
-
23711627362 ShimShim
-
24711627502 ShimShim
-
25711220785 Balancing ShaftBalancing Shaft
-
26711660300 PlugPlug
