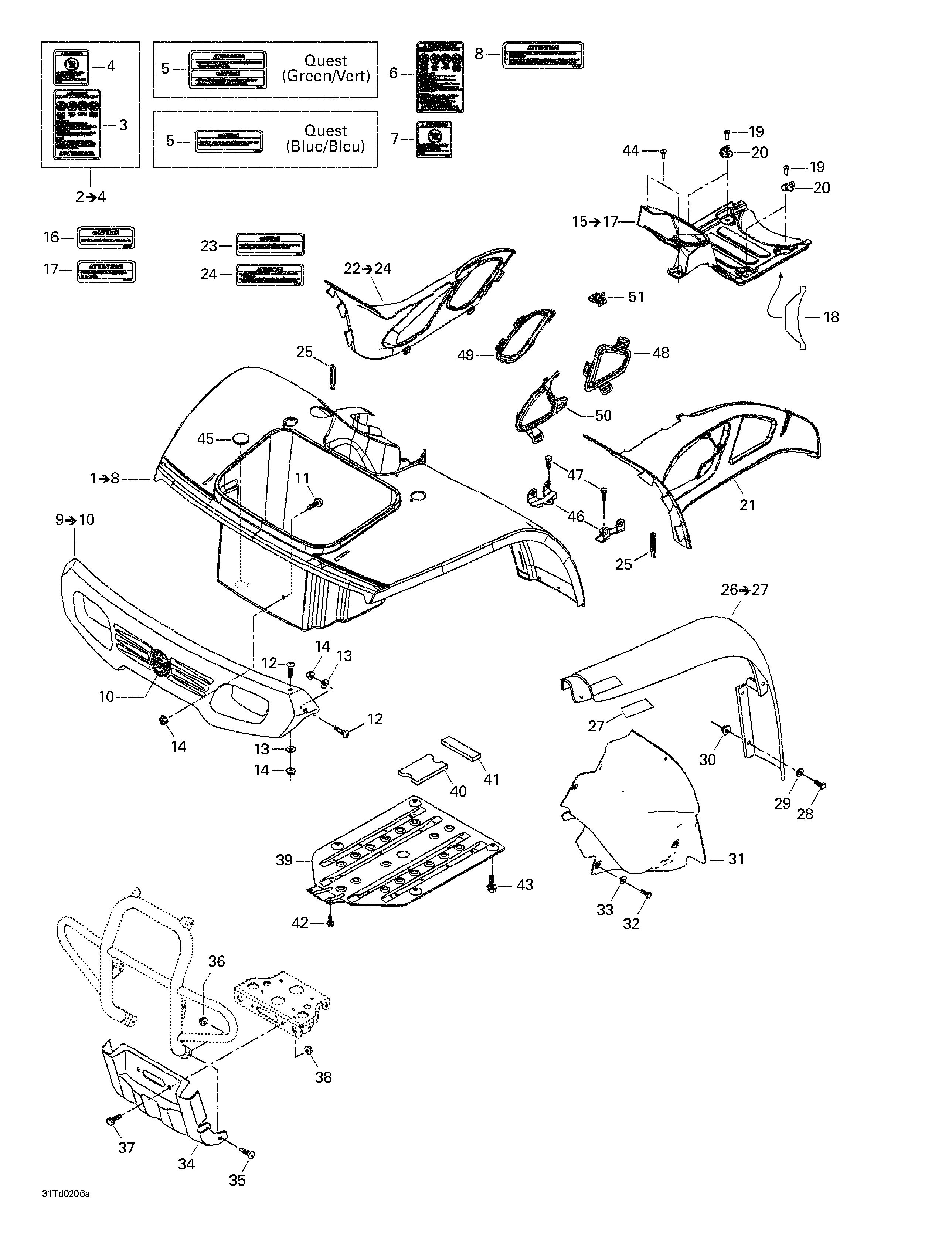

09- Body And Accessories, Front View для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1703500138 Front Fender Kit. Includes 1 - 8. Quest (Green/Vert).Front Fender Kit. Includes 1 - 8. Quest (Green/Vert).
-
703500144 Front Fender Kit. Quest (Blue/Bleu).Front Fender Kit. Quest (Blue/Bleu).
-
2704900034 Warning Label Ass'y. Includes 2 - 4. (English)Warning Label Ass'y. Includes 2 - 4. (English)
-
5704900135 Warning Label (English). (Drive Select Lever) Quest (Green/Vert).Warning Label (English). (Drive Select Lever) Quest (Green/Vert).
-
704900007 Warning Label (English). (Drive Select Lever) Quest (Blue/Bleu).Warning Label (English). (Drive Select Lever) Quest (Blue/Bleu).
-
6704900002 Warning Label (French). (Injuries/Death)Warning Label (French). (Injuries/Death)
-
7704900012 Warning Label (French). (Under 16)Warning Label (French). (Under 16)
-
704900008 Warning Label (French). (Drive Select Lever) Quest (Blue/Bleu).Warning Label (French). (Drive Select Lever) Quest (Blue/Bleu).
-
9703500152 Front Fascia Kit. Includes 9 - 10.Front Fascia Kit. Includes 9 - 10.
-
10704900130 Bombardier LogoBombardier Logo
-
11211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
12211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
13224060201 Flat WasherFlat Washer
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15703500176 Console Kit. Includes 15 - 17.Console Kit. Includes 15 - 17.
-
16704900247 Warning Label (English). (Max. Dash Cargo)Warning Label (English). (Max. Dash Cargo)
-
17704900250 Warning Label (French). (Max. Dash Cargo)Warning Label (French). (Max. Dash Cargo)
-
18705000541 Reflective SheetReflective Sheet
-
19211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
20705000369 HookHook
-
21705000203 LH Cover. Quest (Blue/Bleu).LH Cover. Quest (Blue/Bleu).
-
705000334 LH Cover. Quest (Green/Vert).LH Cover. Quest (Green/Vert).
-
22703500154 R.H. Cover Kit. Includes 22 - 24. Quest (Blue/Bleu).R.H. Cover Kit. Includes 22 - 24. Quest (Blue/Bleu).
-
703500155 R.H. Cover Kit (Green). Quest (Green/Vert).R.H. Cover Kit (Green). Quest (Green/Vert).
-
23704900007 Warning Label (English). (Drive Select Lever)Warning Label (English). (Drive Select Lever)
-
24704900008 Warning Label (French). (Drive Select Lever)Warning Label (French). (Drive Select Lever)
-
25570023800 Windshield LatchWindshield Latch
-
26703500148 LH Front Mudguard Kit. Includes 26 - 27.LH Front Mudguard Kit. Includes 26 - 27.
-
703500149 R.H. Front Mudguard KitR.H. Front Mudguard Kit
-
27705000083 LH Front Reflector (Orange)LH Front Reflector (Orange)
-
705000026 R.H. Front Reflector (Orange)R.H. Front Reflector (Orange)
-
28207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
29224060201 Flat WasherFlat Washer
-
30233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
31705000133 LH ProtectorLH Protector
-
705000134 R.H. ProtectorR.H. Protector
-
32210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
33224061201 Flat WasherFlat Washer
-
34705000340 Protector PlateProtector Plate
-
35211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37207602544 Hex. Flanged Screw M10 x 25Hex. Flanged Screw M10 x 25
-
38233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
39705000308 Motor ProtectorMotor Protector
-
40293830092 Rubber ProtectorRubber Protector
-
41293830012 Rubber StripRubber Strip
-
42207561644 Hex. Flanged Screw M6 x 16. (Scotch Grip)Hex. Flanged Screw M6 x 16. (Scotch Grip)
-
43207582044 Hex. Flanged Screw M8 x 20. (Scotch Grip)Hex. Flanged Screw M8 x 20. (Scotch Grip)
-
44414745900 Phillips ScrewPhillips Screw
-
45570041600 Rubber CoverRubber Cover
-
46705000311 Protector BracketProtector Bracket
-
47210261080 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
48705000367 LH Rear CoverLH Rear Cover
-
49705000366 R.H. Rear CoverR.H. Rear Cover
-
50705000368 LH Front CoverLH Front Cover
-
51517302183 ClipClip
