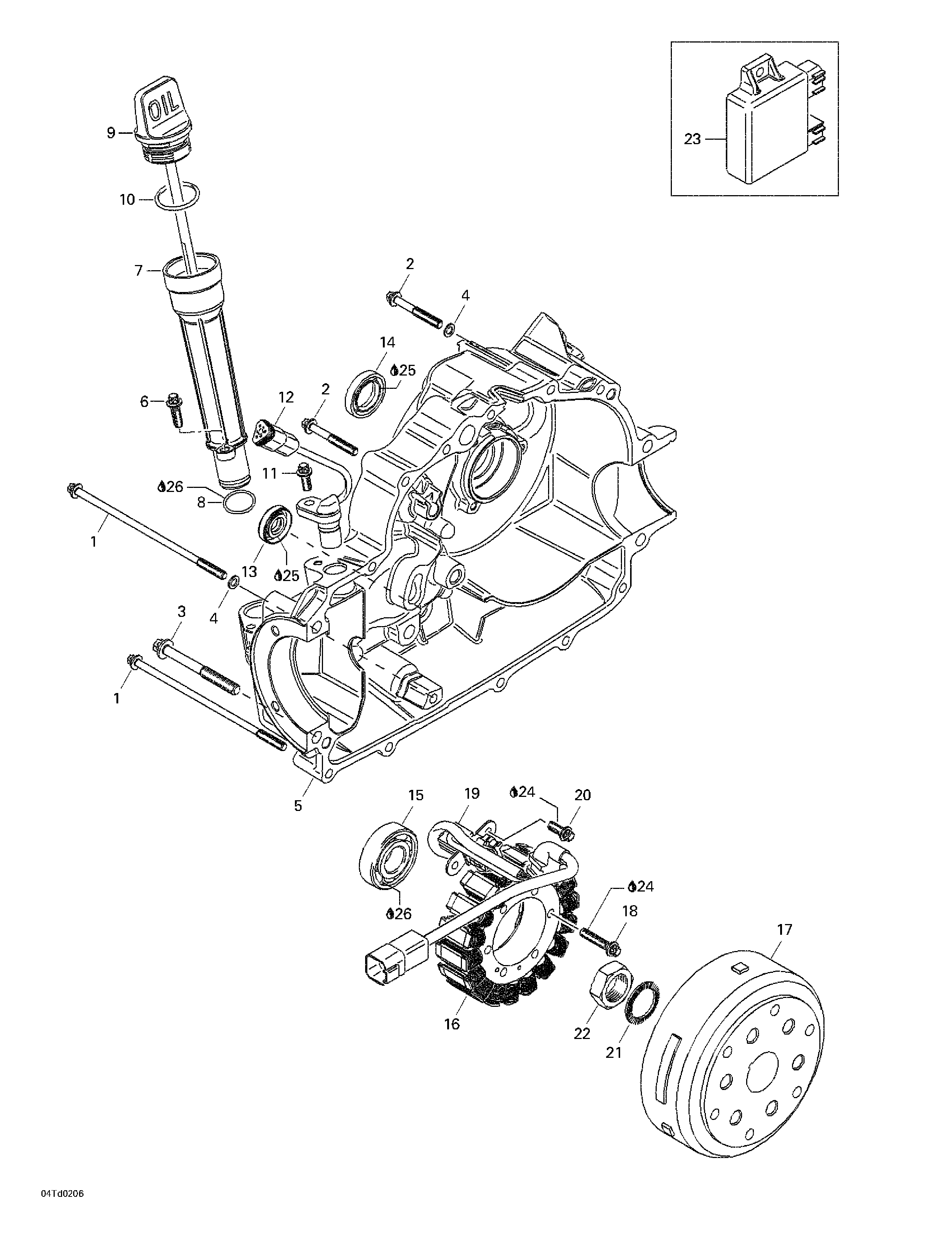

03- Magneto для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1711641423 Torx Flanged Screw M6 x 130Torx Flanged Screw M6 x 130
-
3711640333 Torx Flanged Screw M8 x 65Torx Flanged Screw M8 x 65
-
4404146600 Sealing WasherSealing Washer
-
6711641233 Torx Flanged Screw M6 x 25Torx Flanged Screw M6 x 25
-
7711956980 Dipstick TubeDipstick Tube
-
8711630430 O-RingO-Ring
-
9711956895 DipstickDipstick
-
10711430590 O-RingO-Ring
-
11711641043 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
12711265622 Speed SensorSpeed Sensor
-
16711296630 GeneratorGenerator
-
18711641253 Torx Screw M6 x 35Torx Screw M6 x 35
-
19711260870 Cable CoverCable Cover
-
20711641043 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
21711845510 WasherWasher
-
22711242950 Hex. Nut M24Hex. Nut M24
-
23711265820 Electronic BoxElectronic Box
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
