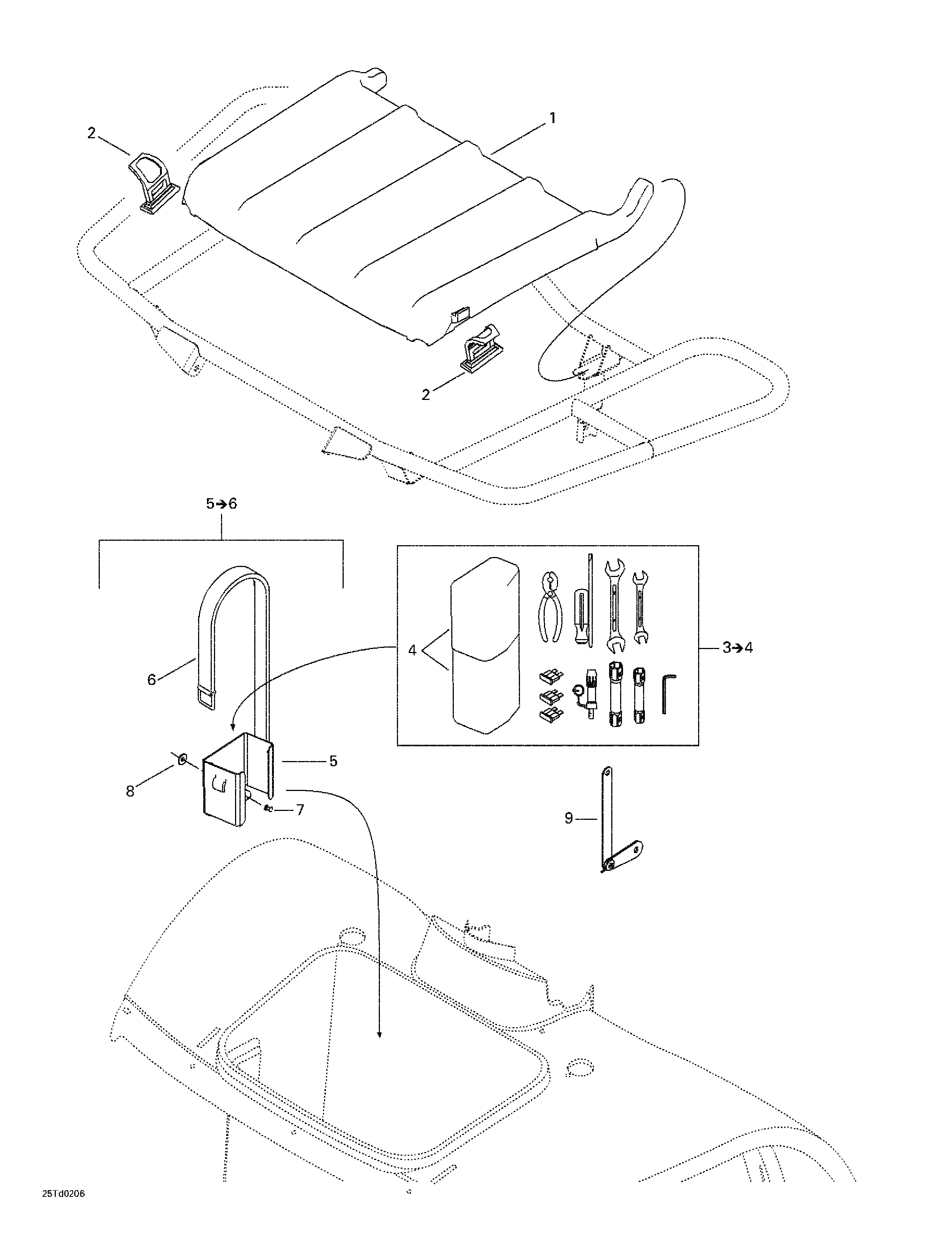

09- Front Tray для BRP Quest, Green/vert - 2002
-
№АртикулНазвание
-
1708200002 Storage CoverStorage Cover
-
2708200003 Storage Cover LatchStorage Cover Latch
-
3704700049 Tool Box With Tools. Includes 3 - 4.Tool Box With Tools. Includes 3 - 4.
-
4572036310 Tool BoxTool Box
-
5708200007 Tray Support Ass'y. Includes 5 - 6.Tray Support Ass'y. Includes 5 - 6.
-
5708200013 Tray SupportTray Support
-
6293850021 Rubber StrapRubber Strap
-
7293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
8391301600 WasherWasher
-
9529035599 Wrench Ass'y (Transmission)Wrench Ass'y (Transmission)
-
10529007800 Shock Wrench (Not Shown)Shock Wrench (Not Shown)
